| Emulate monitor information for maximum DP Compatibility
- Continuously emulates DisplayPort EDID information
- Supports resolutions up to 7680x4320@30Hz or 3840x2160@ 144Hz, with additional support for HDR
- Uses Cloned Data or Pre-stored resolutions/timings
- Headless connection (No monitor connection required)

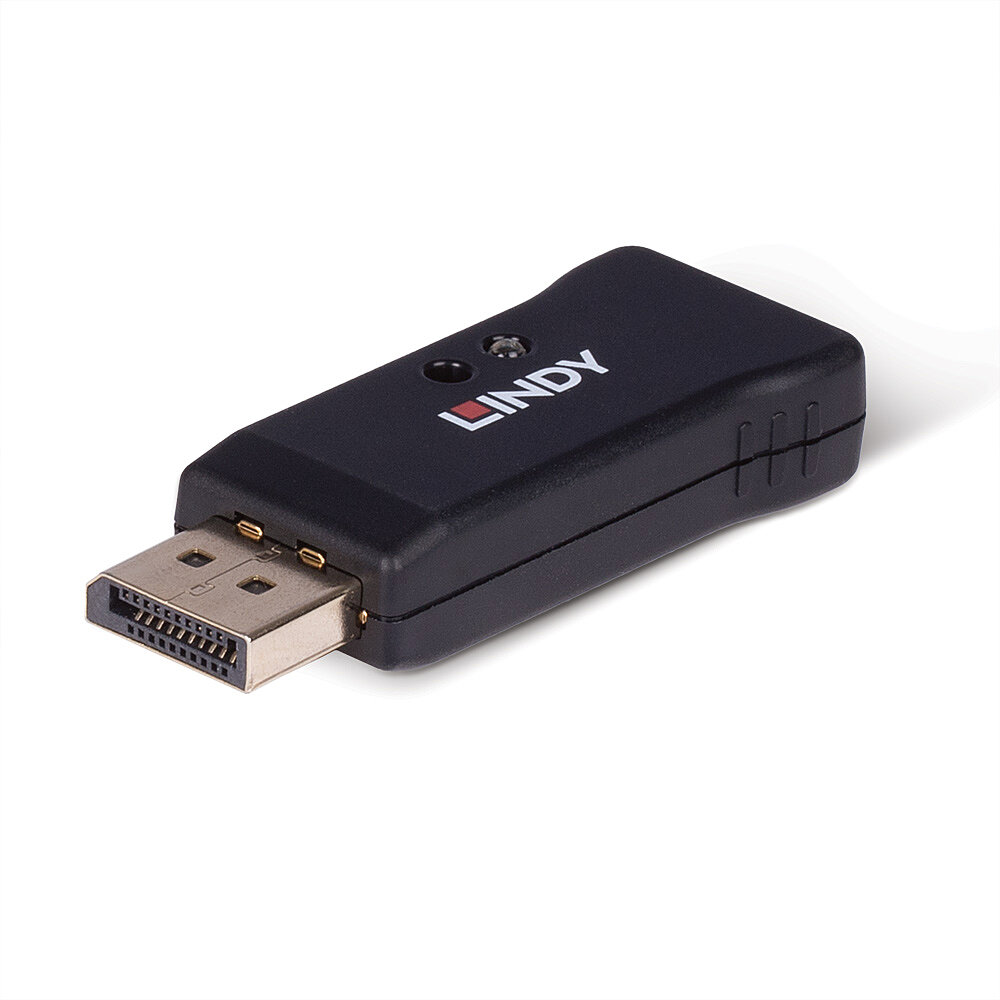

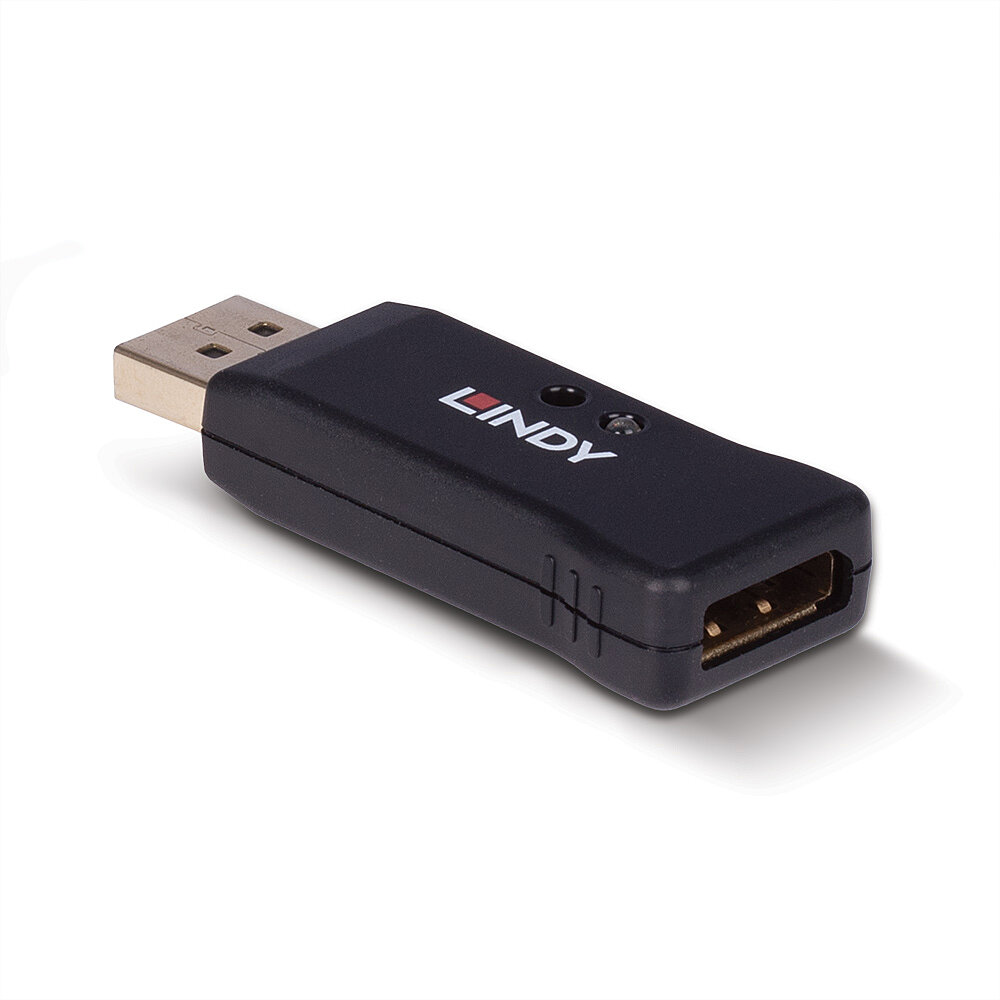

The Lindy DisplayPort 1.4 EDID Emulator Adapter is designed for systems that require an uninterrupted signal to overcome EDID related issues that commonly occur when using AV equipment such KVM's, Extenders, Splitters & Switches.
The Emulator also features LED indicators to ensure a quick simple installation process and with support for resolutions up to 7620x4320@30Hz or 3840x2160@144Hz HDR (Via cloning), HDCP 2.2 & DPCP 2.0 pass-through, this emulator is perfect for use with Ultra HD 4K monitors, Displays and source equipment.


A headless EDID adapter enables a simulated connection on the video source device without requiring an actual monitor to be connected.
With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new DP equipment works seamlessly with no compromise on performance.
This adapter can be used to quickly and easily clone the EDID data from the DP display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds; Alternatively the EDID Emulator is configured with a preset EDID which uses the most common resolutions/timing combinations. Please see the technical information section for a full breakdown.
Note: When EDID emulator is in headless mode rebooting/restarting will cause the resolution to default to 3840x2160@60Hz, 4:2:2, 8-bit.
Specifications - AV Interface: DisplayPort
- Interface Standard: 1.4
- Supported Bandwidth: 32.4Gbps
- Maximum Resolution: 7680x4320@30Hz 4:4:4 8bit
- Video EDID:
- 800x600 at 60Hz
- 832x624 at 60Hz
- 1024x768 at 60Hz
- 1280x720 at 60Hz
- 1280x960 at 60Hz
- 1280x1024 at 60Hz
- 1366x768 at 60Hz
- 1440x900 at 60Hz
- 1600x900 at 60Hz
- 1600x1200 at 60Hz
- 1680x1050 at 60Hz
- 1920x1080 at 60Hz (Default Resolution)
- 1920x1200 at 60Hz
- 1920x2160 at 60Hz
- 2048x1536 at 60Hz
- 2560x1440 at 60Hz
- 3200x1800 at 60Hz
- 3840x1620 at 60Hz
- 3840x2160 at 60Hz
- Audio EDID: LPCM 2-Channel, 16/20/24 bit depths at 32/44.1/48 kHz
- HDCP Support: 2.2
- Special Features: Headless connection (No Monitor connection required)

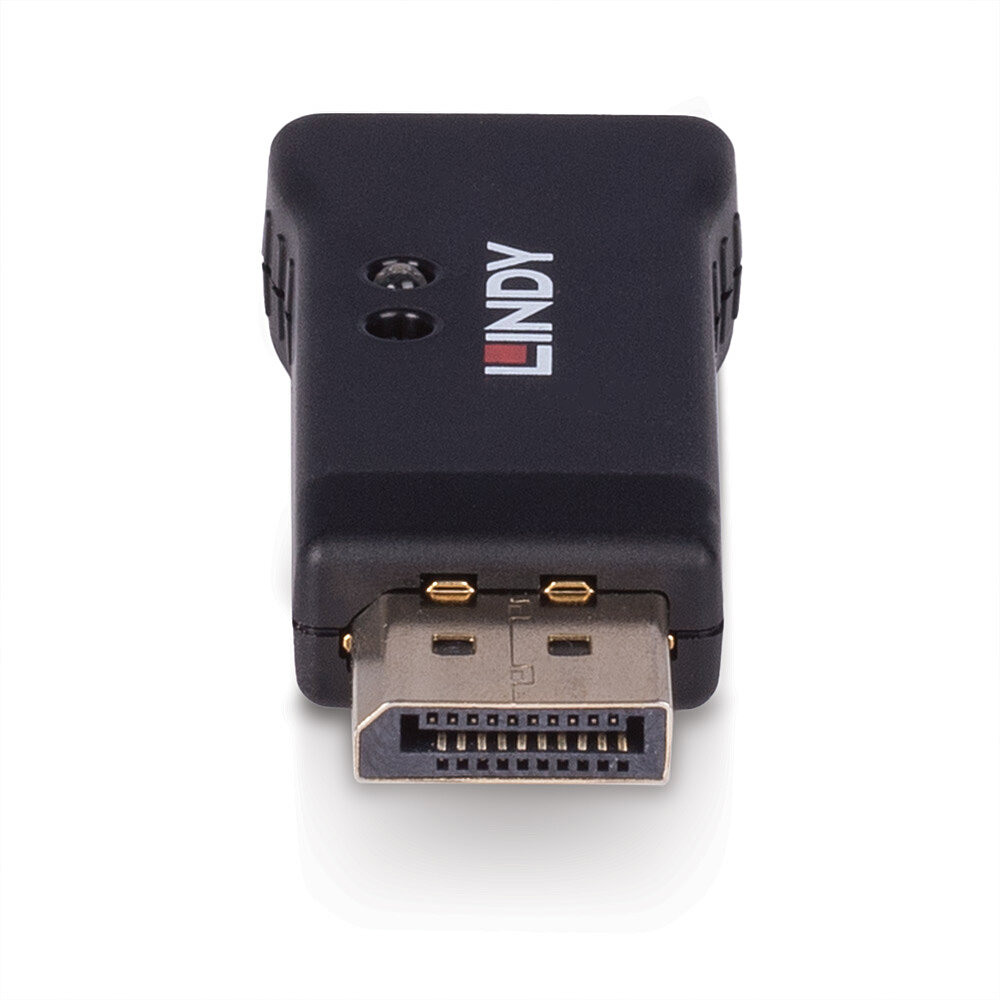

Connectors - Input: DisplayPort Male

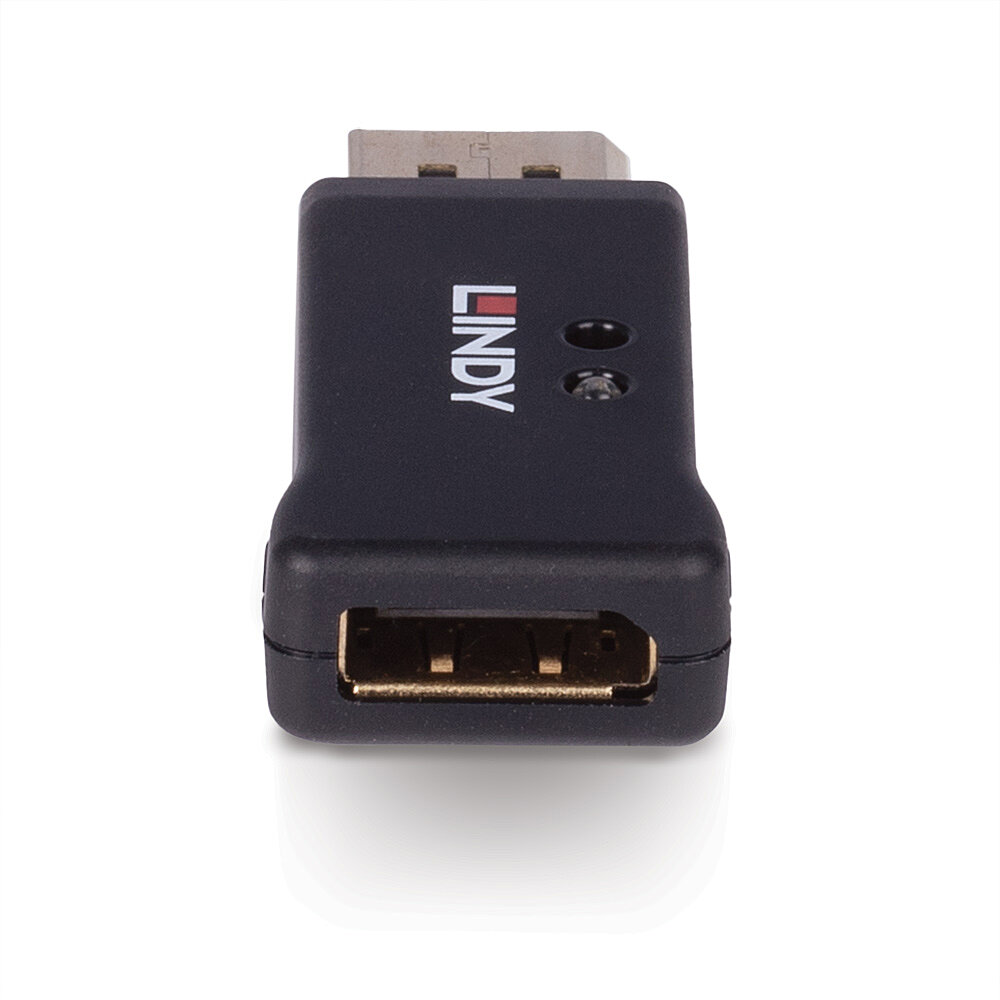

- Output: DisplayPort Female
- Power: Via DP Source Interface
Physical Properties - Dimensions WxDxH: 25.17x51.59x12.05mm (0.99x2.03x0.47in)
- Housing Material: ABS
- Net Weight: 0.012kg (0.028lb)
- Operating Temperature: 0°C - 50°C (32°F - 122°F)
- Storage Temperature: -20°C - 70°C (-4°F - 176°F)
- Humidity: 0 - 90% RH (non-condensing)
- Colour: Black
Miscellaneous - Packaging Type: Polybag
- Packaging Dimensions: 136x138mm (5.35x5.43in)
- Gross Weight: 0.026kg (0.057lb)
- Product Compliance: CE, UKCA, FCC, RoHS & REACH
Package Contents - DP 1.4 EDID Emulator
- Lindy Manual
