| Capture video and audio from an HDMI® source device
- Capture and record 4K@30Hz resolution video and audio from HDMI® source devices
- Input and Loop-Out port support resolutions up to 4K@60Hz
- Captures WQHD and FullHD resolutions with 60Hz
- Easy plug and play set up with USB Type-C connection
The Lindy USB Type C - HDMI® 4K Video Capture Card allows you to capture and record video from an HDMI® source device, such as a game console or camera, and transfer it to your USB Type-C equipped computer or device. The card supports 4K@30Hz recording resolutions and can be used for a variety of purposes such as live streaming, video production, and content creation. It also allows for real time monitoring of the HDMI source on the computer or device.
Please note: No software is provided with this capture device, 3rd party software must be used.


Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications - AV Interface: HDMI®, USB Type C
- Interface Standard: USB 3.2 Gen 1, HDMI® 1.4b
- Supported Bandwidth: 18Gbps
- Maximum Input Resolution: 3840x2160@60Hz RGB 8bit
- Maximum Output Resolution:
- Loop-Out (HDMI®): 3840x2160@60Hz RGB 8bit
- Capture (USB Type C): 3840x2160@30Hz 4:2:0 8bit, 2560x1440@60Hz 4:2:0 8 bit, 1920x1080@60Hz RGB 8bit
- Chipset: EJ511
- Supported Audio:

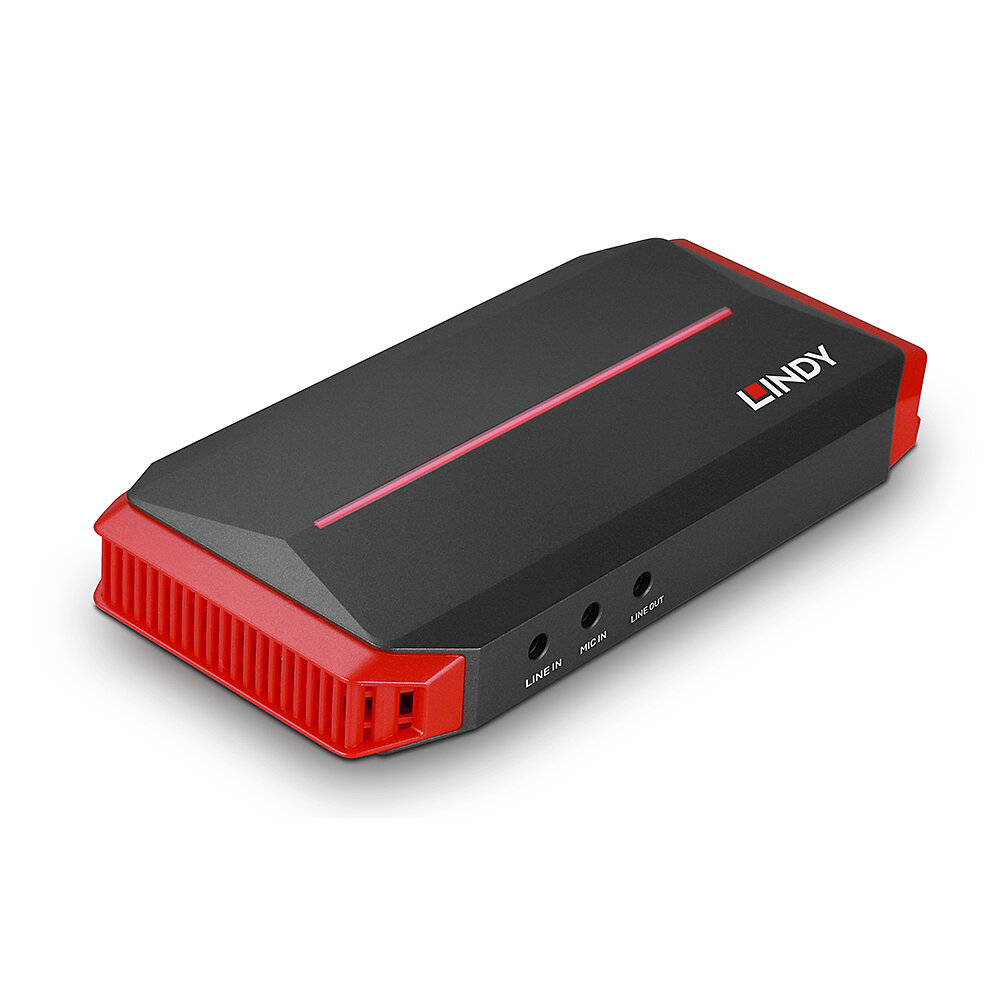

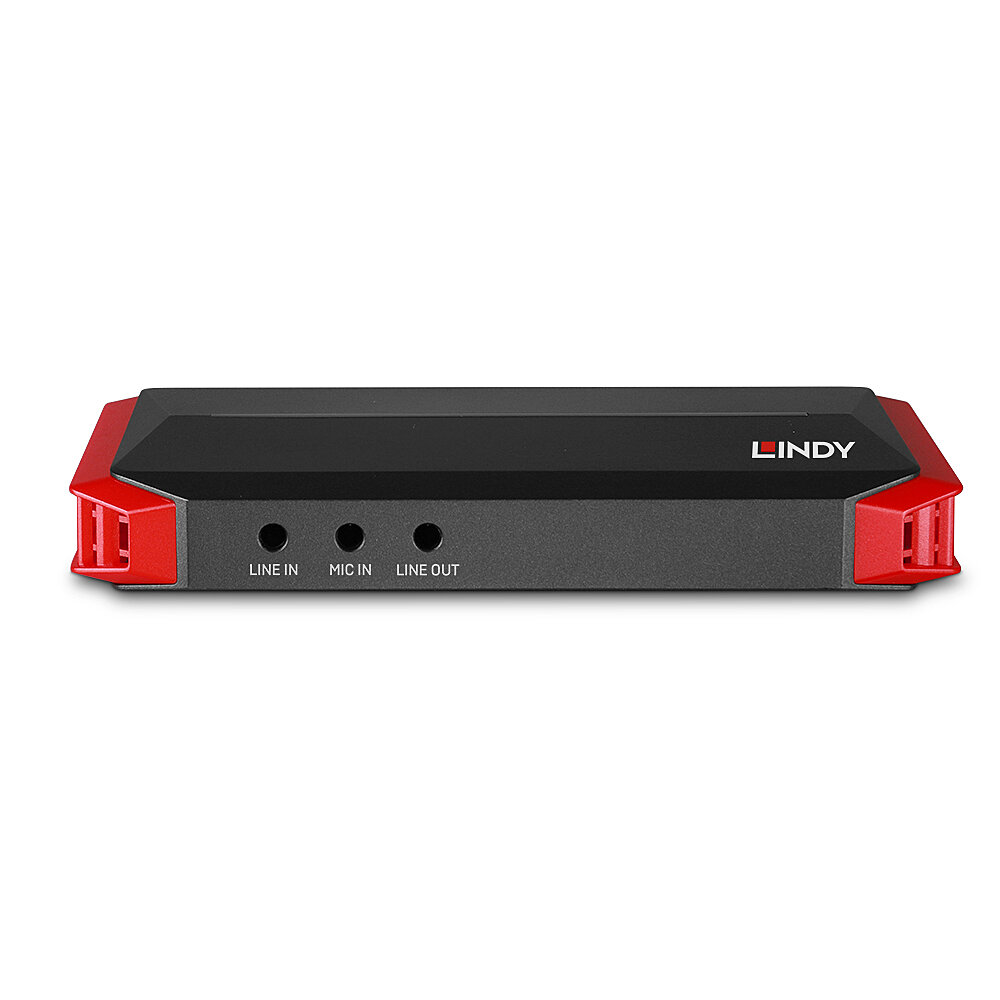

- Separate Audio Ports: 3.5mm Input, 3.5mm Output, 3.5mm Microphone Input
- Special Features: Loop-Out, HDR

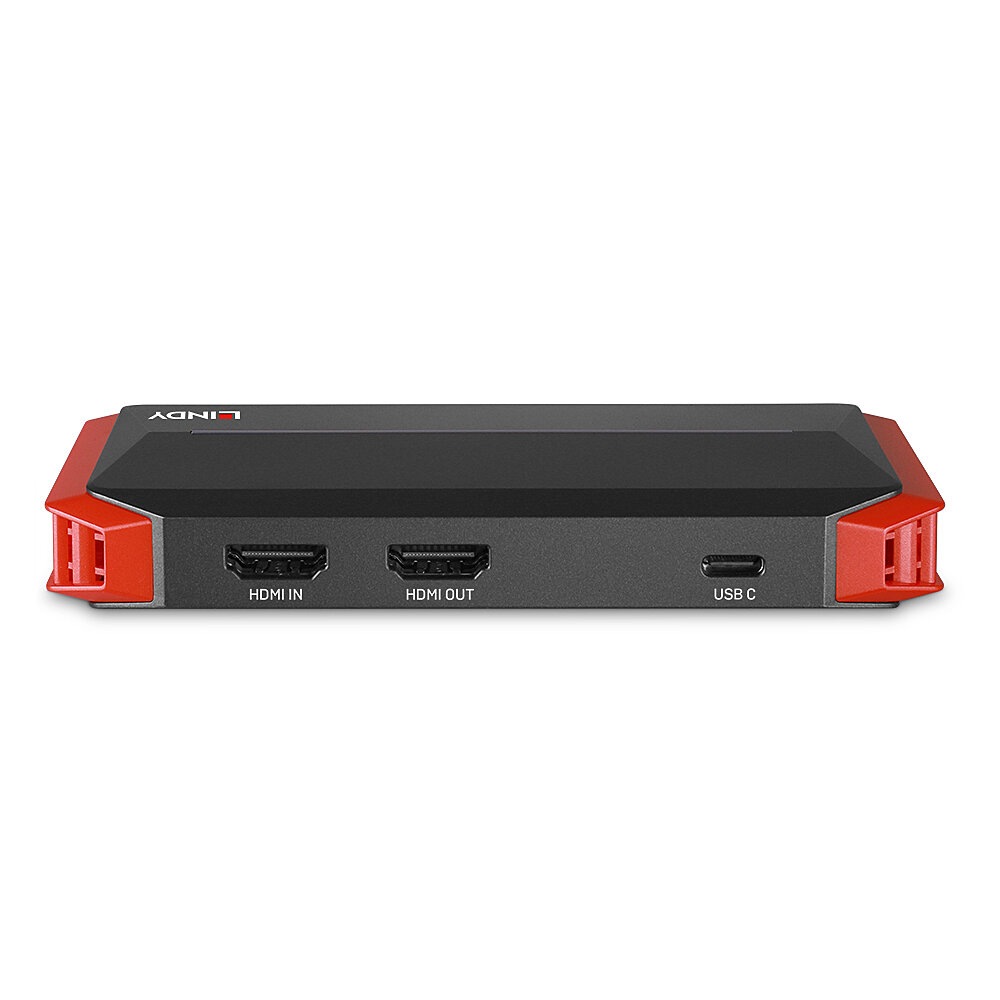

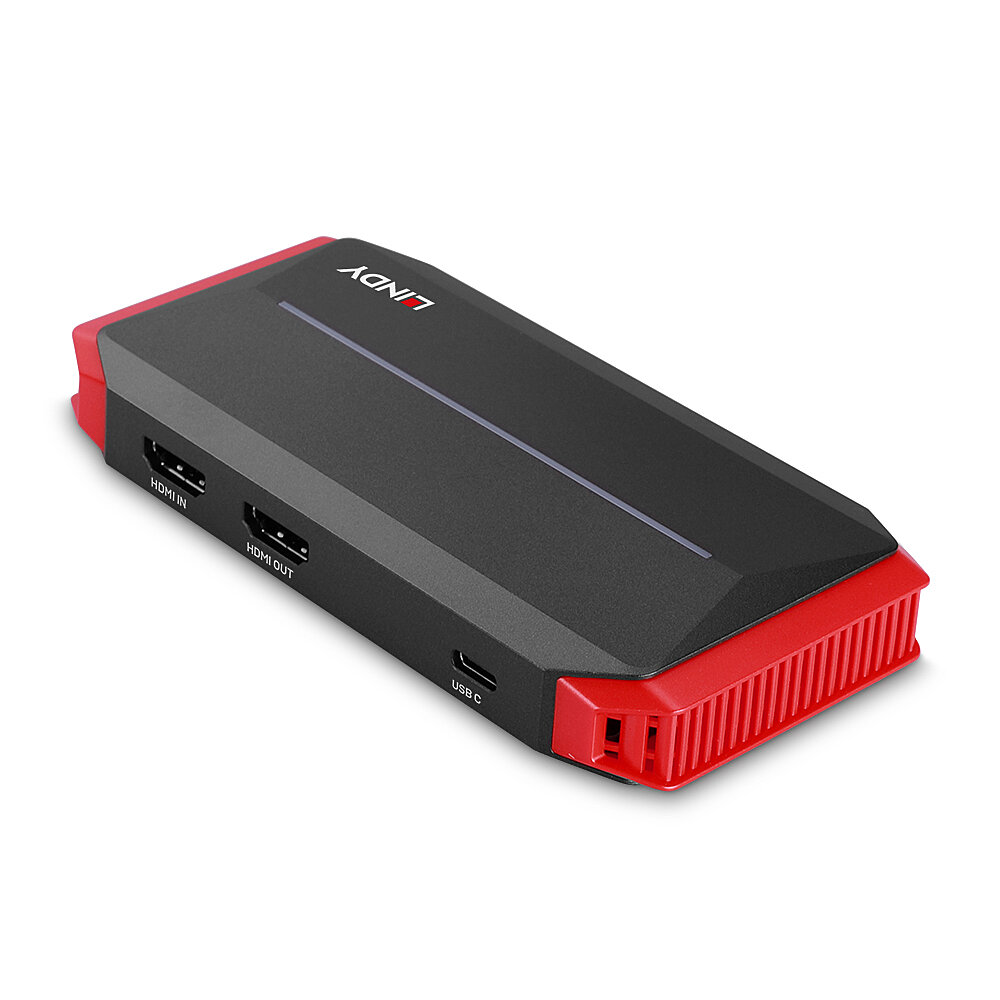

Connectors - Input: 1 x HDMI® (Female)
- Output: 1 x HDMI® (Female), 1 x USB Type C (Female)
Physical Properties - Dimensions (approx.) WxDxH: 130x66x17mm (5.12x2.6x0.67in)
- Housing Material: ABS
- Net Weight: 0.094kg (0.21lb)
- Operating Temperature: -10°C - 40°C (14°F - 104°F)
- Storage Temperature: -20°C - 70°C (-4°F - 158°F)
- Humidity: 0 - 95% RH (non-condensing)
- Power Requirements: 5VDC 1A
- Colour: Grey
Miscellaneous - Packaging Type: Carton box
- Packaging Dimensions: 174x103x46mm (6.85x4.06x1.81in)
- Gross Weight: 0.201kg (0.44lb)
- Product Compliance: CE, UKCA, FCC, RoHS & REACH
Package Contents - Video Capture Card
- 0.5m USB Type C to USB Type C Cable with USB Type A Adapter
- Lindy Manual
