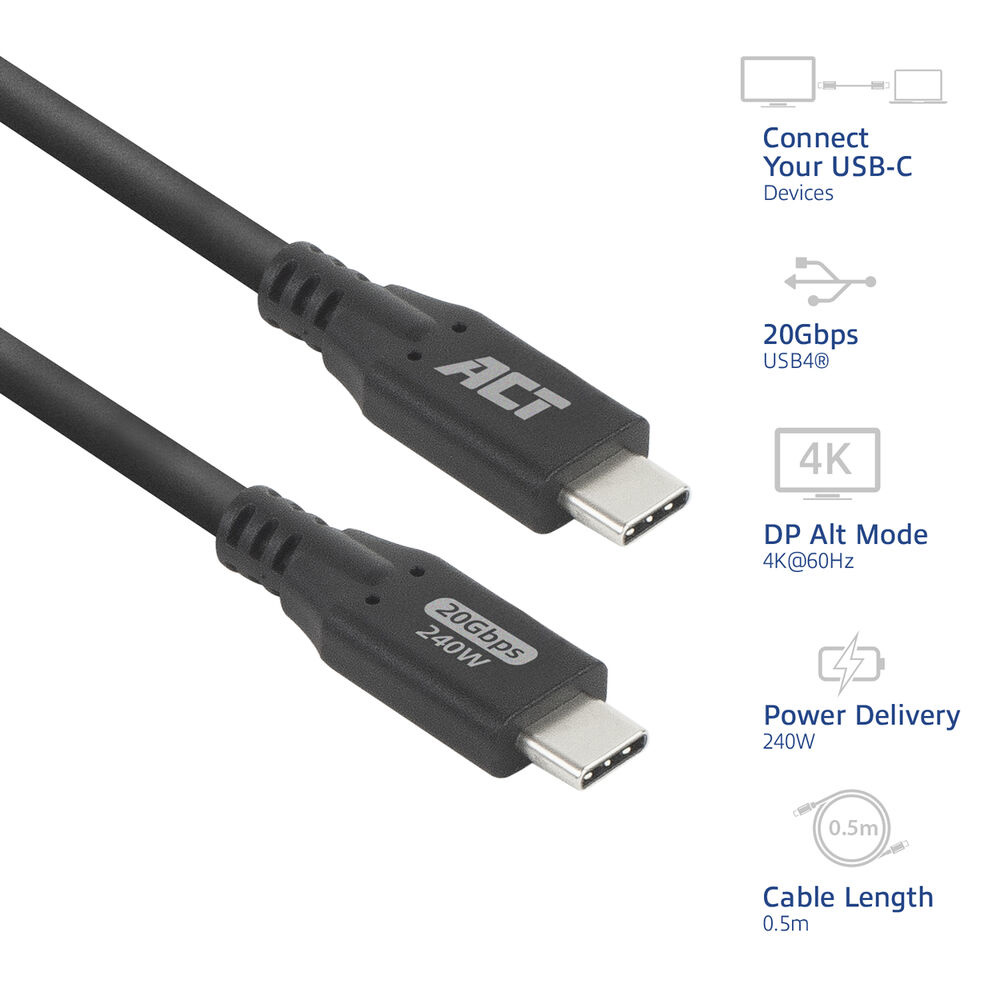

| USB4® | 20Gbps | USB Type-C® | 240W | 4K@60Hz | 1m
- USB4® cable for connecting and charging USB-C devices

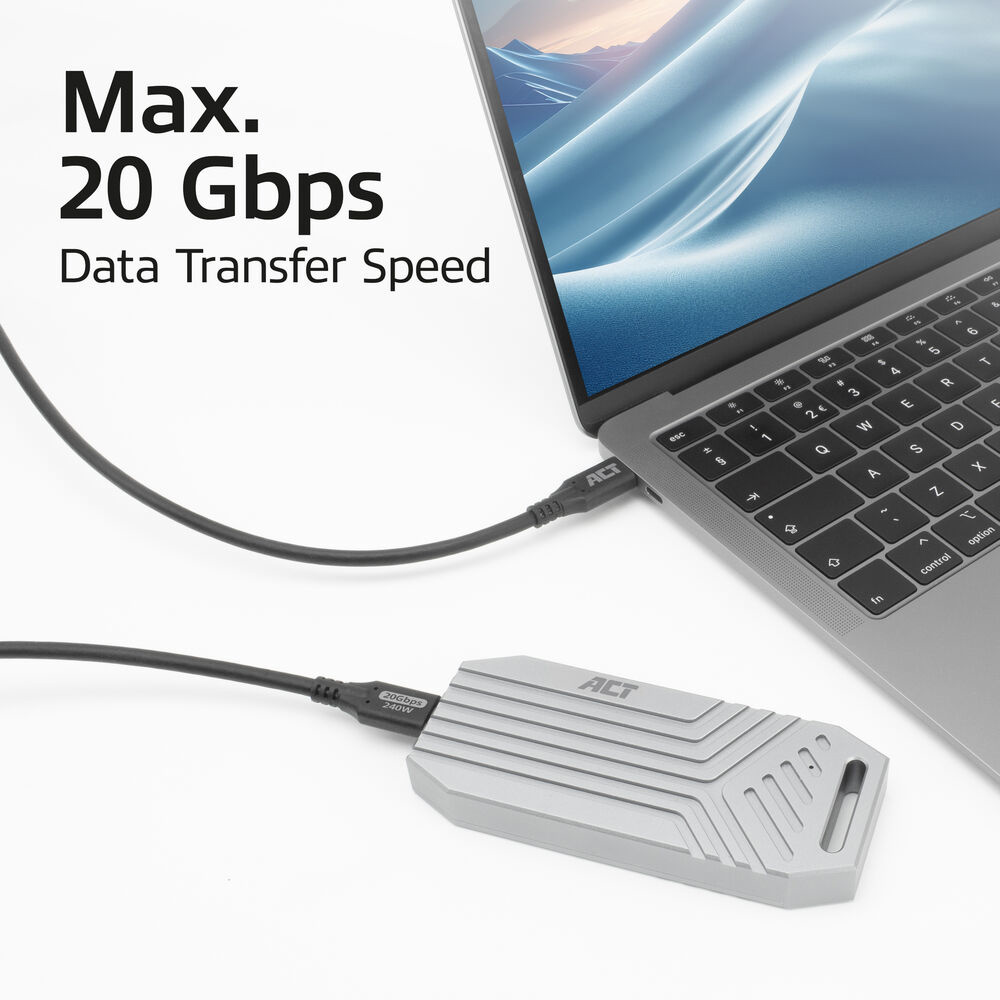

- Data transfer speed up to 20Gbps
- Power Delivery: Extended Power Range (EPR) up to 48V @ 5A = 240W

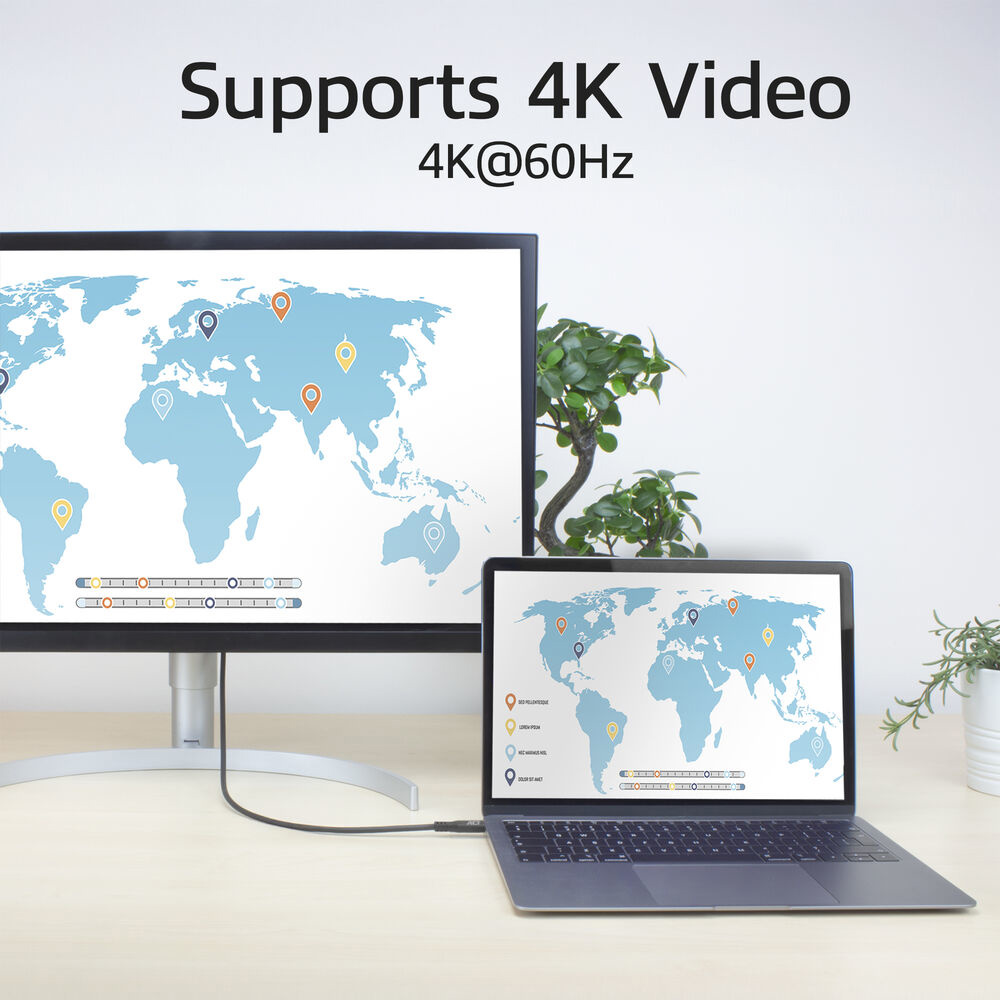

- DisplayPort Alternate Mode 1.4 support with a maximum video resolution up to 4K@60Hz
- Connectors: USB-C male - USB-C male
- Cable length: 1.0 meters
- Backwards compatible with USB 3.2, USB 3.1, USB 3.0 and USB 2.0
Connect your USB-C devices with the AC7420 USB4® 20Gbps USB-C cable. The cable can reach a maximum data transfer speed up to 20Gbps and can handle 240W power because of the Extended Power Range. The AC7420 supports DisplayPort Alternate Mode 1.4 with a maximum resolution up to 4K@60Hz and is backwards compatible with USB 3.2, USB 3.1, USB 3.0 and USB 2.0.


Fast data, high power and video via one USB4® cable
The AC7420 includes an intelligent e-marker chip. This chip communicates with the connected devices, e.g. laptop or charger, which features are supported by the cable. The AC7420 can handle data, power and video.
USB4® 20Gbps
The AC7420 USB-C cable includes the USB4® technology. The cable supports a maximum data transfer speed up to 20Gbps.
Power Delivery: Extended Power Range 240W
The EPR adds additional Power Delivery profiles, 28V, 36V and 48V, to the USB4® cable. The AC7420 includes the 48V profile that enables the cable to transfer a maximum power of 240W. As other cables with SPR (Standard Power Range) and without e-marker only can deliver 60W.
DisplayPort Alternate Mode protocol
The USB4® cable supports the DisplayPort Alternate Mode 1.4 (DP Alt Mode) protocol to distribute video over USB-C. The AC7420 supports a maximum resolution of 4K@60Hz.
This product is also available in other lengths - AC7420 - 0.5m (1.64ft)
- AC7421 - 1m (3.28ft)
- AC7422 - 2m (6.56ft)
|
