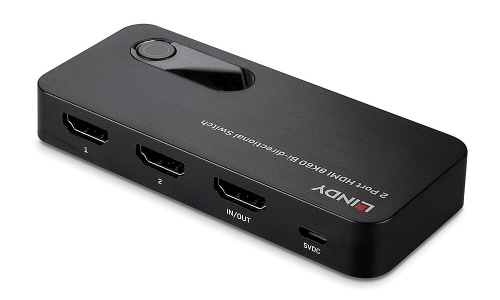

| The Lindy HDMI 8K60 Bi-Directional Switch allows the user to connect two 8K source devices such as Blu-Ray players or games consoles to a single 8K display or projector and easily switch between them at the push of a button.
- Switches between two source devices to one output, or one source device to two outputs
- Supports 48G resolutions up to 8K@60Hz, with additional support for HDR
- Supports HDMI audio pass-through
- Compact, minimalist design to ensure no distraction from the display or installation
Alternatively, connect one 8K source can be connected to two 8K displays or projectors and switch between displays at the touch of a button.
With support for resolutions up to 8K 7680x4320 @ 60Hz or 3840x2160 @ 120Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.
Manual de Instruções (PDF)
Technical Details - Specifications
- AV Interface: HDMI
- Interface Standard: HDMI 2.1
- Supports Bandwidth: 48Gbit/s
- Maximum Resolution:
- 7680x4320@60Hz 4:2:0 10bit
- 3840x2160@120Hz 4:4:4 10bit
- HDCP Support: HDCP 2.3
- Supported Audio: Pass-Through
- Special Features: HDR10

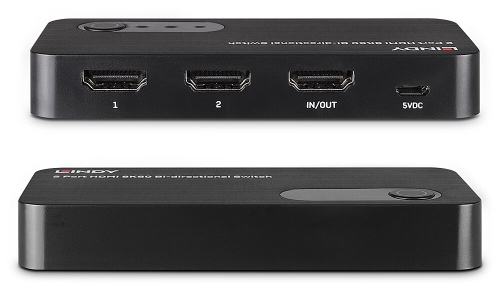

- Connectors
- Input: 2 x HDMI Type A (Female)
- Output: HDMI Type A (Female)
- Control: -
- Power: USB Micro-B (Female)
- Physical Properties
- Dimensions (approx.) WxDxH: 102x45x14mm (4.02x1.77x0.55in)
- Housing Material: ABS
- Net Weight: 0.047kg (0.1lb)
- Operating Temperature: 0°C - 70°C (32°F - 158°F)
- Storage Temperature: -10°C - 80°C (14°F - 176°F)
- Humidity: 5 - 90% RH (non-condensing)
- Power Requirements: 5VDC 1A
- Colour: Black
- Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 127x93x17mm (5x3.66x0.67in)
- Gross Weight: 0.088kg (0.19lb)
- Product Compliance: CE, UKCA, FCC, RoHS & REACH
- Package Contents
- 2 Port HDMI Switch
- 0.8m USB A to Micro-B cable
- Lindy Manual
