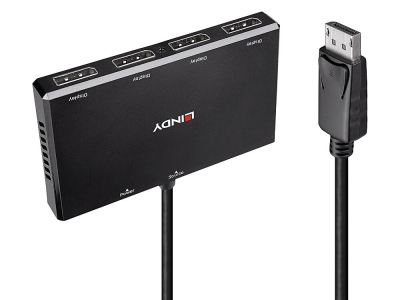

| The Lindy 4 Port DP MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 4 DisplayPort monitors.
- Connect 4 DisplayPort displays to a DisplayPort computer or laptop
- Expand, duplicate or display independent DP signals over dual DP monitors
- Supports resolutions up to 4K 30Hz, and audio up to 7.1CH
- Compatible with various graphics cards including AMD Eyefinity, NVIDIA Surround and Intel Collage
Please Note: This hub is not compatible with Apple products

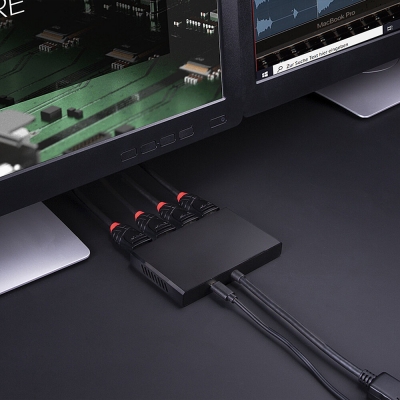

MST hubs allow for the connection of a single DP source device including computers, laptops or notebooks to 4 separate DP displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across 4 displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on the displays for use in hospitality, retail or educational scenarios.
With support up to 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.
Technical details - Specification
- AV Interface: DisplayPort
- Interface Standard: DP 1.2
- Supported Bandwidth: 21.6Gbps
- Maximum Resolution:
- 2 x 3840x2160@30Hx 4:4:4 8bit
- 4 x 1920x1080@60Hz 4:4:4 8bit
- HDCP Support: HDCP 1.4
- Supported Audio: Up to 7.1CH
- Separate Audio Ports: -
- CEC Support: -
- Serial Interface: -
- Special Features: -
- Connectors
- Input: DisplayPort (Male)
- Output: 4 x DisplayPort (Female)
- Control: -

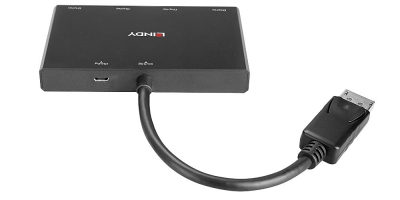

- Power: Micro-USB (Female)
- Physical Properties
- Dimensions (approx.) WxDxH: 255x105x15mm (10.04x4.13x0.59in)
- Housing Material: ABS
- Net Weight: 0.12kg (0.26lb)
- Operating Temperature: -20°C - 40°C (-4°F - 104°F)
- Storage Temperature: -40°C - 80°C (-40°F - 176°F)
- Humidity: 5 - 90% RH (non-condensing)
- Power Requirements: 5V1A
- Colour: Black
- Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 174x194x20mm (6.85x7.64x0.39in)
- Gross Weight: 0.131kg (0.29lb)
- Certificated: CE, UKCA, FCC, RoHS, UL & REACH
- Package Contents
- DisplayPort MST Hub
- USB Micro-B to USB Type A Cable
|
