| A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.
- Controls four HDMI equipped PCs from a single keyboard, mouse and monitor
- Switch via the unit's push button or keyboard hotkeys
- Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4 with HDR
- 3.5mm stereo audio ports to connect microphone, speakers or headphones

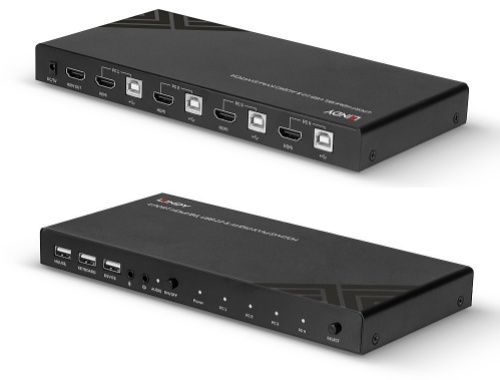

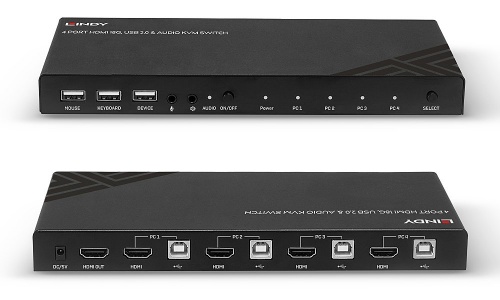

The Lindy 4 Port HDMI 4K60, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over four HDMI equipped PCs from a single keyboard, mouse and monitor setup. Simply connect to your computer with appropriate cables (sold separately).
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI signal but to a built-in USB converter while an additional USB device such as a printer, scanner or hard drive can be connected to the additional USB port on the front panel.
The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users.
Manual de Instruções (PDF 443KB)
Technical details - Specifications
- AV Interface: HDMI
- Console Interfaces: USB
- Interface Standard: HDMI 2.0, USB 2.0
- Maximum Resolution: 4096x2160@60Hz 4:4:4 8Bit
- HDCP Support: 2.2
- Supported Audio: Analogue Stereo
- Separate Audio Ports: 2 x 3.5mm (Female)
- Serial Interface: -
- Console Number: 1
- Max Number PC/Server: 4
- Cascadable: -
- Switching Method: Push Button, Hotkey Switching
- 19" Rack Mountable: -
- Special Features: USB 2.0 device port, Audio ports with On/Off button, Active LED Indicators
- Connectors
- Console Interfaces: HDMI Type A (Female), 3 x USB 2.0 Type A (Female), 2 x 3.5mm (Female)
- PC/Server Interfaces: 4 x HDMI Type A (Female), 4 x USB 2.0 Type B (Female)
- Other Interfaces: -
- Power: 3.5/1.35mm DC socket
- Physical Properties
- Dimensions (approx.) WxDxH: 231x108x23mm (9.09x4.25x0.91in)
- Housing Material: Metal
- Net Weight: 0.689kg (1.52lb)
- Operating Temperature: 0°C - 50°C (32°F - 122°F)
- Storage Temperature: -10°C - 60°C (-14°F - 140°F)
- Humidity: 5 - 80% RH (non-condensing)
- Power Requirements: 5VDC 2A
- Colour: Black
- Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 292x238x55mm (11.5x9.37x2.17in)
- Gross Weight: 0.988kg (2.18lb)
- Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
- Package Content
- HDMI KVM Switch
- Multi-country PSU (UK, EU, US & AUS)
- Lindy Manual
|
