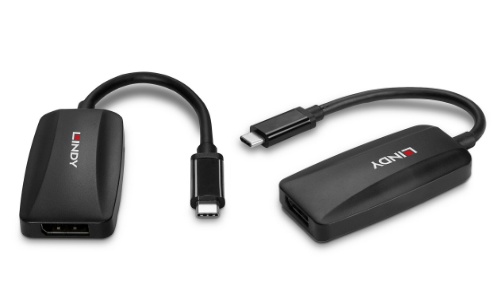

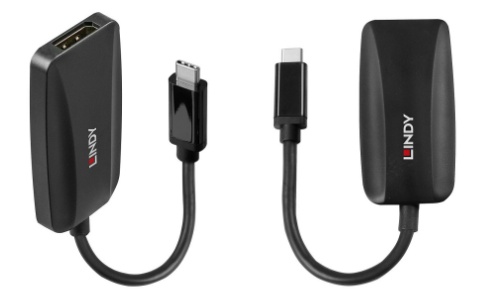

The Lindy USB Type C to DP 1.4 Converter is a high performance solution, which allows users to easily add external video capabilities to a computer featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode.
- Converts a USB Type C port to an 8K capable DisplayPort connection
- Supports resolutions up to 7680x4320@60Hz and 3840x2160@120Hz
- Requires DisplayPort 1.4 Alternate Mode support by the USB Port/Bus
- Plug & Play, no drivers required
It supports video resolutions of 8K 7680x4320@60Hz and 4K120Hz*, making it the ideal tool for 8K game streaming or high resolution 8K video editing. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour. HDCP 2.2 ensures issue-free playback of 8K Ultra HD movies and other 8K content.
The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting. The Type C connectors' reversible design means a connection can be found regardless of which way the cable is inserted into the port of a laptop, notebook or Macbook. With Plug and Play installation, this converter can be installed with minimum fuss, perfect for both professional and first time users.
*Please make sure that DSC v1.2a is supported on your devices
DataSheet
CE Declaration
Technical details - Specifications
- AV Interface: USB Type C to DisplayPort
- Interface Standard: DisplayPort 1.4
- Supported Bandwidth: 32.4Gbps
- Maximum Input Resolution: 7680x4320@60Hz and 3840x2160@120Hz
- Maximum Output Resolution: 7680x4320@60Hz and 3840x2160@120Hz
- Chipset: FL7102, TUSB544
- Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support (incl. Apple M1)
- Power Delivery: -
- HDCP Support: HDCP 2.2
- Supported Audio: -
- Separate Audio Ports: -
- Special Features: DisplayPort Alternate Mode, HDR
- Connectors
- Inputs: 1 x USB Type C (Male)
- Outputs: 1 x DisplayPort (Female)
- Power: Bus-powered
- Physical Properties
- Dimensions (approx.) WxDxH: 66.5x33.5x7mm (2.62x1.32x0.28in)
- (Fixed) Cable Length: 130mm (5.12in)
- Housing Material: Plastic
- Net Weight: 0.027kg (0.06lb)
- Operating Temperature: -20°C - 40°C (-4°F - 104°F)
- Storage Temperature: -40°C - 80°C (-40°F - 80°F)
- Humidity: 0 - 85% RH (non-condensing)
- Power Requirements: -
- Colour: Black
- Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 174x20x194mm (6.3x0.79x7.64in)
- Gross Weight: 0.032kg (0.07lb)
- Certificated: CE, FCC, RoHS & REACH, CP65
- Package Contents
- USB Type C to DisplayPort 1.4 Converter
|
