| USB to SATA converters allow users to expand PC storage by allowing a SATA hard drive or SSD to connect to a USB equipped PC.
- Connects a SATA hard drive to a USB Type A equipped computer
- Supports SATA up to 6Gbps
- USB 3.1 Gen 1 / USB 3.0 SuperSpeed standard with data rates up to 5Gbps
- Compatible with USB Type A equipped computers

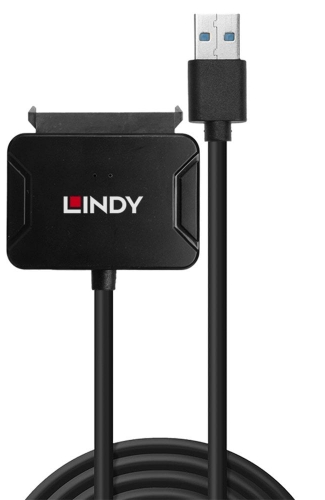

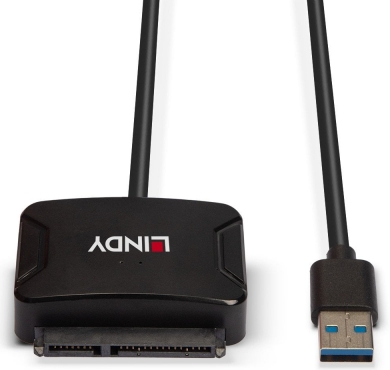

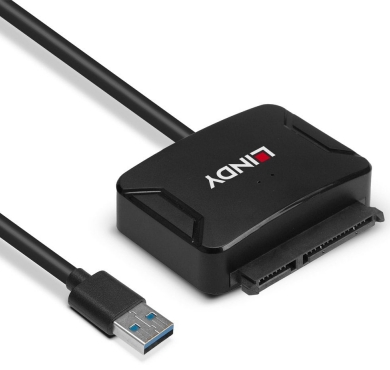

This Lindy USB 3.0 to SATA Converter allows users to easily connect high performance 5.25", 3.5" or 2.5" SATA drives without having to install the drive in an enclosure or computer. It is an ideal tool for computer technicians as well as for private users for quick backups.
With plug & play installation, the converter can be easily connected and used instantly.
The included mains adapter powers the connected hard drive. The USB 3.0 to SATA Converter does not directly support 3.3V HDD/SSDs; for drives which require 3.3V, please use a SATA/Micro SATA adapter.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Manual de Instruções (PDF)
Technical Information - Specifications
- Interface: USB to SATA
- Interface Standard: USB 3.1 Gen 1 / 3.0, SATA 3.0
- Supported Bandwidth: 5Gbps, 6Gbps
- Chipset: ASM1153E
- Compatibility: USB Type A equipped computers
- Connectors
- Inputs: 1 x USB Type A (Male)
- Outputs: 1 x SATA 22 Pin (Male)
- Power: 5.5/2.1mm DC socket
- Physical Properties
- Dimensions WxDxH: 50x35.4x13.6mm (1.97x1.39x0.54in)
- (Fixed) Cable Length: 1m (3.28ft)
- Housing Material: ABS
- Net Weight: 0.237kg (0.52lb)
- Operating Temperature: 0°C - 40°C (32°F - 100°F)
- Storage Temperature: -10°C - 60°C (14°F - 140°F)
- Humidity: 20 - 80% RH (non-condensing)
- Power Requirements: 12VDC 2A
- Colour: Black
- Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 175x175x51mm (6.89x6.89x2.01in)
- Gross Weight: 0.328kg (0.72lb)
- Certificated: CE, FCC, RoHS, REACH, CP65
- Package Contents
USB 3.0 to SATA Converter
Multi-Country Power Supply (EU, UK, US & AUS)
Lindy QIG
|
