The solid aluminium AC7090 USB-C 3.2 Gen2 enclosure is suited for a M.2 NVMe SSD. The enclosure is light-weighted and pocket-sized and supports M.2 NVMe SSDs with M-key or B+M connectors. SuperSpeed USB 10Gbit/s and UASP both ensure a quick file transfer speed.
- Solid aluminium USB 3.2 Gen2 enclosure for a NVMe/PCIe SSD up to 80mm with M or B+M key with UASP support for higher data transfer
- M.2 SSD size: 2230, 2242, 2260, 2280
- M.2 NOT supported SSD type B or B+M key (SATA)
- Lightweight and pocket-sized: easy to take along
- LED status indicator
- USB powered; USB-C to USB-C cable, screwdriver and screws enclosed

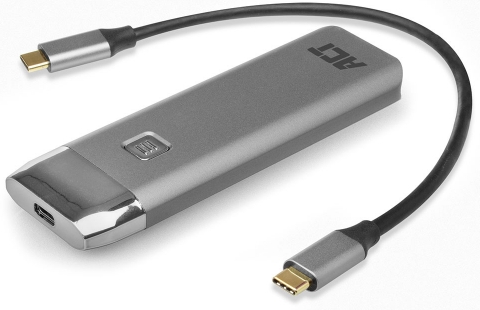

Compact and solid enclosure
The M.2 NVMe SSD is kept safe within the solid aluminium housing of the AC7090. The enclosure is light-weighted and pocket-sized.
Suitable for M.2 NVMe M and B+M connectors
The AC7090 enclosure is suited for a M.2 NVMe SSD with a M or B+M key. Place the M.2 NVMe SSD easily into the enclosure. Use a M.2 NVMe SSD up to 80mm.

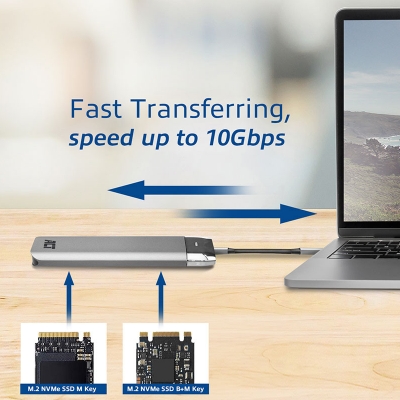

Super Speed USB 10Gbit/s
The AC7090 is USB powered with SuperSpeed USB 3.2 Gen2 and has UASP (USB Attached SCSI-Protocol) support. These features both ensure high speed data transfer. The enclosure is backwards compatible with USB 3.2 Gen1, USB 3.1 Gen2, USB 3.1 Gen1, USB 3.0 and USB 2.0.
Complete package
A USB-C 3.2 Gen2 to USB-C cable, screws and even a screwdriver are enclosed. The M.2 SDD is ready for use within a few minutes.
Datasheet EU Declaration of conformity UK Declaration of conformity Quick Install Guide
Specifications - USB Type-C: Yes
- Connection cable: 25 cm
- Drive format: M.2 2230, M.2 2242, M.2 2260, M.2 2280
- Drive interface: B+M-Key NVMe, M-Key NVMe
- Disk Bays: 1
- Screwless: Yes
- Enclosure material: Aluminum
- Colour: Grey
- Computer connection: USB C male (x1)
- Supported features: UASP
- USB version: USB 3.2 Gen 2 - SuperSpeed 10Gbit/s (USB 3.1)
- Data transfer rate: 10 Gbps
- Power supply: USB powered


|
