| A converter allows devices which use different interfaces e.g. HDMI and DVI to connect to one another by converting one signal to the other.
- Connects a DisplayPort source to an HDMI, DVI or VGA display
- Supports HDMI resolutions up to 4K UHD 3840x2160@60Hz, VGA up to Full HD and DVI up to and above Full HD
- High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut
- Easily connect with a single legacy or modern display at any one time

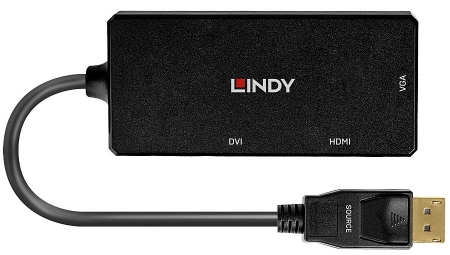

The Lindy DisplayPort 1.4 to HDMI, DVI & VGA Converter allows users to connect either an HDMI, DVI or VGA screen to a DisplayPort source. Supporting full 4K UHD resolutions up to 3840x2160@60Hz and with additional support for High Dynamic Range on HDMI displays, 4K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. DVI monitors are supported with a maximum resolution of 1920x1200@60Hz, VGA monitors and projectors up to 1920x1080@60Hz.
With its lightweight, low profile design, this converter easily fits into a laptop bag and simply expands available connectivity options, so users can connect to various digital and analogue video devices, without having to carry multiple adapters - ideal for BYOD applications.
Manual de Instruções (PDF)
Technical details - Specifications
- AV Interface: DisplayPort to HDMI, DVI, VGA
- Interface Standard: DP 1.4, HDMI 2.0, DVI-I, VGA
- Supported Bandwidth: 32.4Gbps
- Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8bit
- Maximum Output Resolution: 3840x2160@60Hz 4:4:4 8bit SDR / 4:2:2 10bit HDR (HDMI), 1920x1200@60Hz (DVI) & 1920x1080@60Hz (VGA)
- Chipset: PS8469, ANX9833
- HDCP Support: HDCP 2.2
- Supported Audio: Pass-through for HDMI
- Separate Audio Ports: -
- Special Features: -
- Connectors
- Input: DisplayPort Male
- Output:
- HDMI Type A Female
- DVI-I Female
- VGA Female
- Physical properties
- Dimensions (approx.) WxDxH:
- Connector: 57.8x20.9x13.7mm (2.28x0.82x0.54in)
- Housing: 87.7x40.7x6.7mm (3.45x1.6x0.26in)
- Cable Length: 150mm (5.91in)
- Housing Material: ABS
- Jacket Material: PVC
- Jacket Diameter: 5.2mm (0.2in)
- Minimum Bend Radius: 40mm (1.57in)
- Net Weight: 0.055kg (0.12lb)
- Operating Temperature: 0°C - 45°C (32°F - 113°F)
- Storage Temperature: -10°C - 70°C (14°F - 158°F)
- Humidity: 10 - 85% RH (non-condensing)
- Colour: Black
- Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
- Gross Weight: 0.063kg (0.14lb)
- Certificated: CE, FCC, RoHS & REACH, California Proposition 65
- Package Contents
- DisplayPort 1.4 to HDMI 18G, DVI & VGA Converter
- Lindy Manual
