HDMI audio embedders are a great solution for connecting digital or analogue audio inputs and overlay a separate audio signal to the HDMI video content.
- Embeds digital or analogue audio into an HDMI signal
- TosLink (Optical) & 3.5mm audio inputs
- 4K UHD 4096x2160 @60Hz video pass-through, with additional support for HDR
- CEC and High Bit Rate Audio Pass-through
The Lindy HDMI 18G Audio Embedder allows the user to seamlessly embed both digital and analogue audio from a TosLink (Optical) or 3.5mm device and output to the HDMI signal, while also sending the video signal to a 4K UHD display or projector. This is a great solution for connecting separate audio inputs to compliment the video content such as in sports bars when playing alternative commentary over a live event or playing external music over digital advertising in a retail setup.
This embedder supports full 18G HDMI 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, providing enhanced contrast and more lifelike colour.
Featuring support for HDCP 2.2, this device is ideal for use with the latest source devices including set-top boxes, games consoles and media players.
With support for multi-channel audio including Dolby Digital 5.1 via Optical and analogue stereo via RCA connections, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music.
HDMI High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience.
Manual de Instruções (PDF)
Technical details - Specifications
- Video Interface: HDMI
- Interface Standard: 2
- Supported Bandwidth: 18Gbps
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit, 3840x2160@60Hz 4:2:2 12bit
- HDCP Support: 2.2
- Audio Interface: HDMI, TosLink (Optical), 3.5mm
- Chipset: SiI9396SCNUC-HDC
- Supported Audio:
- HDMI (Pass-Through): Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, Dolby DigitalPlus, DTS-HD Master Audio, Dolby TrueHD
- TosLink (Optical): Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, DTS Audio 2CH, Dolby Digital 2CH
- 3.5mm: LPCM 2.0
- Maximum Supported Audio Sample Rate: 24-bit / 192KHz
- Input Impedance: 100 Ohm
- Output Impedance: 100 Ohm
- Output Voltage: 5V
- Frequency Response: -
- Signal to Noise Ratio: -
- Special Features: HDR Support, CEC Pass-through
- Connectors

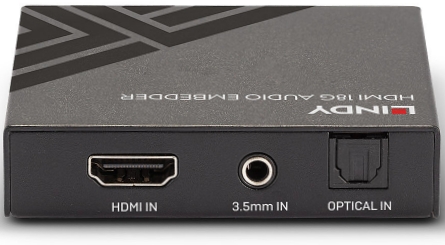

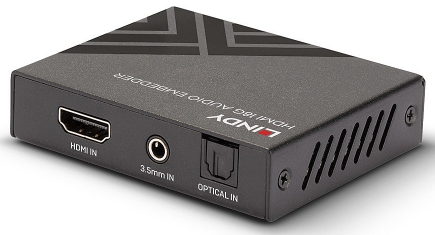

- Input:
- HDMI Type A (Female)
- TosLink (Optical) (Female)
- 3.5mm (Female)

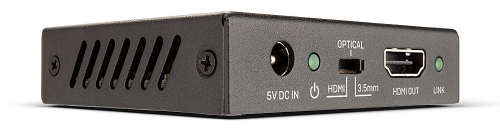

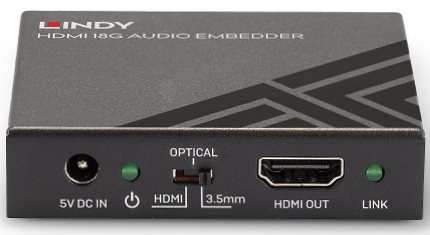

- Output: HDMI Type A (Female)
- Power: 5.5/2.1mm
- Physical Properties
- Dimensions (approx.) WxDxH: 73.5x60.7x17mm (2.89x2.39x0.67in)
- Housing Material: Metal
- Net Weight: 0.235kg (0.52lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 5VDC 1A
- Colour: Black
- Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 115x85x70mm (4.53x3.35x2.76in)
- Gross Weight: 0.306kg (0.67lb)
- Certificated: CE, FCC, RoHS, REACH & California Proposition 65
- Package Contents
- HDMI 18G Audio Embedder
- Multi-country Power Supply (UK, EU, US & AUS)
- Lindy Manual
|
