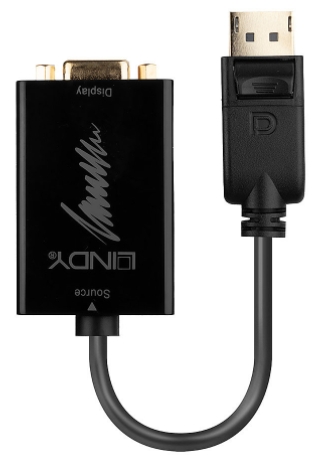

| The Lindy DisplayPort to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage.
- Converts a DisplayPort signal into VGA
- Supports resolutions up to 1920x1080@60Hz
- Can be used to add a secondary monitor for extended or mirrored desktop
- Compact dimensions for easy installation and use
This converter can also be used to add a secondary monitor for extended or mirrored desktop modes to increase productivity and screen real estate. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation.
Technical Data Sheet (PDF)
Technical details - Specifications
- AV Interface: DisplayPort to VGA
- Interface Standard: DisplayPort 1.1, VGA
- Supported Bandwidth: 180MHz
- Maximum Input Resolution: 1920x1080@60Hz
- Maximum Output Resolution: 1920x1080@60Hz
- Chipset: ANX9833
- Connectors
- Input: DisplayPort Male
- Output: VGA Female
- Physical properties
- Dimensions (approx.) WxDxH:
- 38x61x17mm (1.5x2.4x0.67in)
- 20x36x11mm (0.79x1.42x0.43in)/DP
- Cable Length: 150mm (5.91in)
- Housing Material: TPE
- Jacket Material: PVC
- Jacket Diameter: 6.5mm (0.26in)
- Minimum Bend Radius: 70mm (2.76in)
- Net Weight: 0.045kg (0.1lb)
- Operating Temperature: -20°C - 80°C (-4°F - 176°F)
- Storage Temperature: -20°C - 70°C (-4°F - 158°F)
- Humidity: 20 - 90% RH (non-condensing)
- Colour: Black
- Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
- Gross Weight: 0.049kg (0.011lb)
- Certificated: CE, FCC, RoHS & REACH
- Package Contents
- DisplayPort to VGA Active Converter
