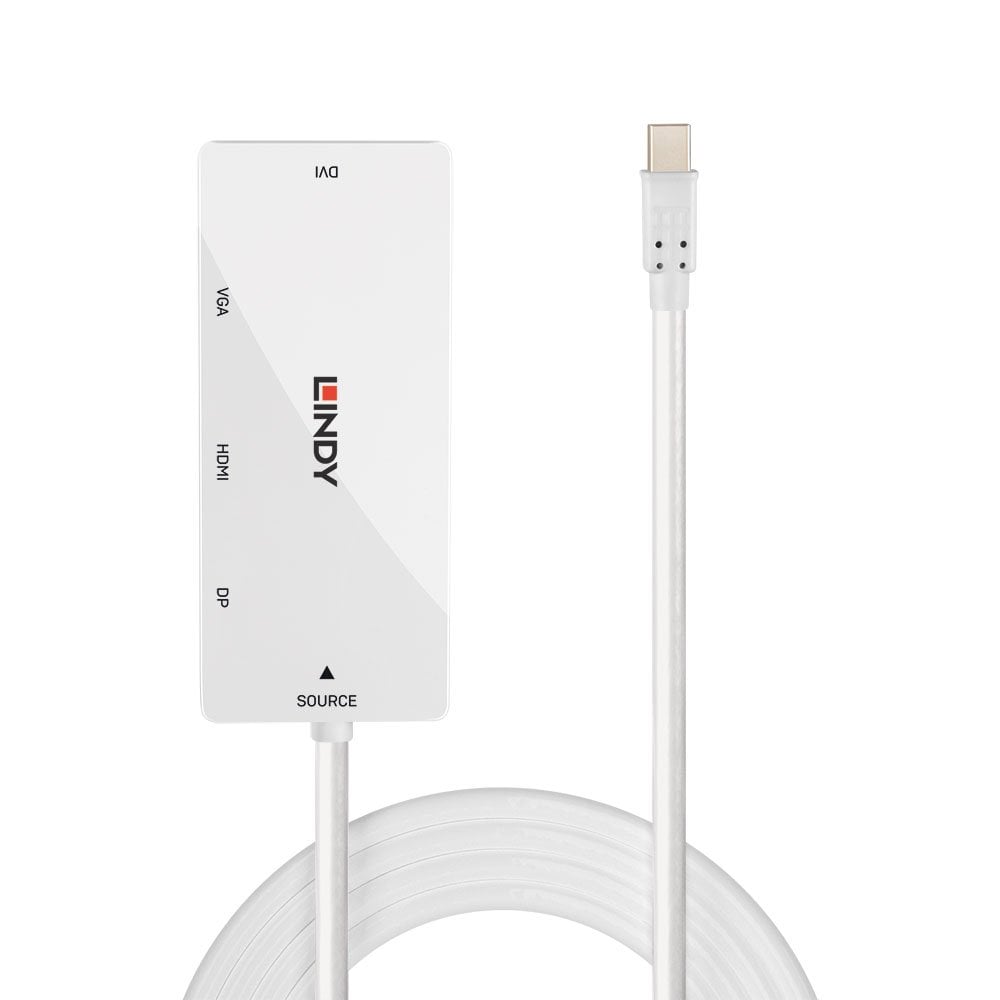

The Lindy Mini DisplayPort to Multi-AV Converter allows users to connect either a HDMI, DP, DVI or VGA screen to a Mini Displayport source. Supporting full 4K Ultra HD resolutions up to 3840x2160@60Hz on DP and HDMI displays, content can be viewed with superior clarity and stunning accuracy. DVI monitors are supported with a maximum resolution of 1920x1200@60Hz, VGA monitors and projectors up to 1920x1080@60Hz.
With its lightweight, low profile design, this converter easily fits into a notebook bag and simply expands available connectivity options, so users can connect to various digital and analogue video devices, without having to carry multiple adapters - ideal for BYOD applications.
Please note that the DVI port only provides digital, no analog signals.
- Converts a DisplayPort signal to HDMI, DP, DVI or VGA
- Supports HDMI and DP resolutions up to 4K@60Hz, VGA up to Full HD and DVI up to and above Full HD
- Easily connect with a single legacy or modern display at any one time
- Compact, portable design
Note: Only one output channel may be used at a time
Technical Specifications
- AV Interface: Mini DisplayPort to DP, HDMI, DVI, VGA
- Interface Standard: DisplayPort 1.2, HDMI 2.0, DVI-I, VGA
- Supported Bandwidth: 21.6Gbps
- Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8bit
- Maximum Output Resolution:
- 3840x2160@60Hz 4:4:4 8bit (DP)
- 3840x2160@60Hz RGB 8bit (HDMI)
- 1920x1200@60Hz (DVI)
- 1920x1200@60Hz (VGA)
- Chipset: PS8339B, ANX9833, PS8348B, PS176
- HDCP Support: HDCP 2.2
- Supported Audio: Pass-through for DP & HDMI
- Input: Mini DisplayPort (Male)
- Output: HDMI Type A Female +DisplayPort Female +DVI-I Female +VGA Female
