The Lindy USB 3.1 NVMe M.2 SSD Enclosure allows the user to install a PCIe/NVMe based M.2 SSD as a portable external drive to USB devices like laptops or PCs. Support for the USB 3.1 Gen 2 standard allows 10Gbps speeds to guarantee high data transfer rates. UASP support also ensures faster speeds for UASP enabled computers.

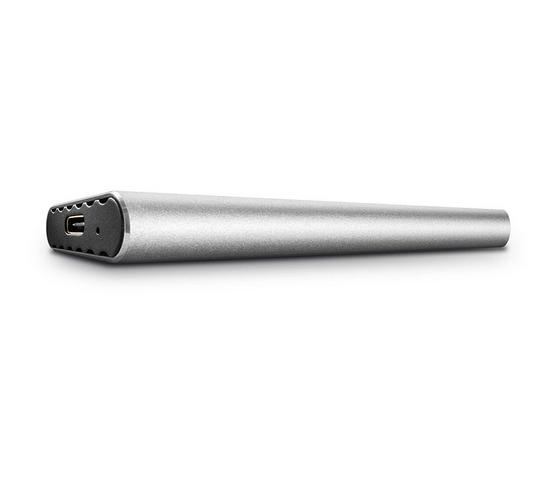

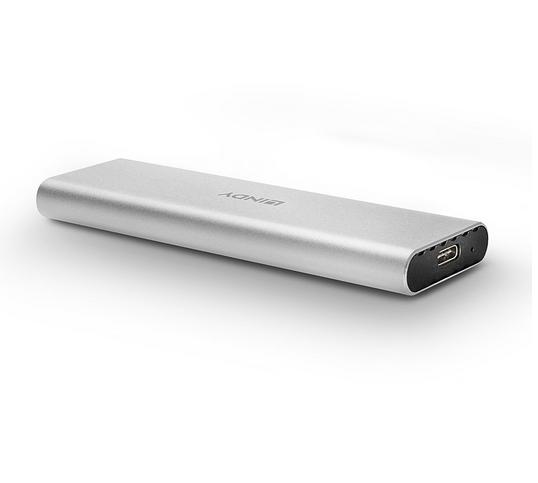

This Lindy enclosure is compatible with PCIe/NVMe based M.2 SSDs with M key in 30, 42, 60 and 80mm lengths. USB bus- powered, therefore requiring no external power supply, ensures this enclosure is an ideal portable solution for IT professionals on-the-go. The enclosure has a robust and elegant aluminium design with ventilation holes at each side for better heat dissipation.
- Aluminium enclosure for PCIe/NVMe based M.2 SSD (not included) li>
- USB 3.1 Gen 2 standard with data transfer rates up to 10Gbps li>
- Ventilation holes aid heat dissipation, ensuring a suitable operating temperature li>
- USB bus-powered for efficient and portable use li>


Manual 275KB
Specification - Interface: USB to PCIe/NVMe M.2 SSD
- Interface Standard: USB 3.1 Gen 2, PCIe Gen 3 x 2
- Supported Bandwidth: 10Gbps, 2GB
- Chipset: JMS583
- Compatibility: USB Type C equipped computers
- Special Features: supports 30/42/60/80mm SSDs, UASP & TRIM
Connectors - Inputs: 1 x USB Type C (Female)
- Outputs: 1 x PCIe based M.2 (Female), M key
- Power: Bus-powered
Physical Properties - Dimensions WxDxH: 37x108x9mm (1.45x4.25x0.35in)
- Housing Material: Aluminium
- Net Weight: 0.037kg (0.08lb)
- Operating Temperature: -5°C - 45°C (23°F - 113°F)
- Storage Temperature: -40°C - 65°C (-40°F - 149°F)
- Colour: Silver
Package Contents - USB 3.1 NVMe M.2 SSD Enclosure
- 0.26m USB 3.1 Gen 2 Type C to C cable

|
