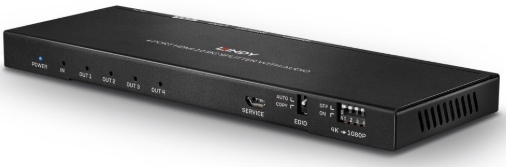

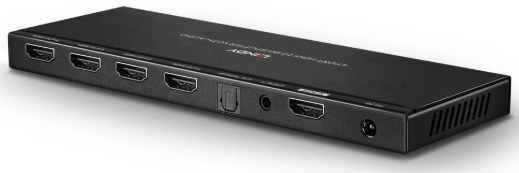

The Lindy 4 Port HDMI 2.0 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately.
- Displays HDMI signals across 4 displays simultaneously from one source device
- Supports resolutions up to 4K 60Hz 4:4:4, with additional support for HDR
- Extract digital and analogue audio from HDMI for non-HDMI amplifiers
- Features a neat switch for downscaling from 4K to 1080p
With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying sports across multiple screens in sports bars or distributing engaging multiscreen educational presentations at tradeshows. The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also feature an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
Manual de Instruções (PDF)
TECHNICAL INFORMATION - Specifications
- AV Interface: HDMI
- Interface Standard: HDMI 2.0
- Supports Bandwidth: 18Gbps
- Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- Supported Audio :
- Audio Pass-through
- LPCM 2CH
- Up to 7.1CH (Optical)
- Separate Audio Ports:
- 3.5mm (Female)
- Toslink (Optical)
- CEC Support: -
- Serial Interface: -
- Special Features: Downscaler Function, EDID Emulation
- Connectors
- Input: HDMI Type A (Female)
- Output:
- 4 x HDMI Type A (Female)
- Toslink (Optical)
- 3.5mm (Female)
- Control: -
- Power : 5.5/2.1mm
- Physical Properties
- Dimensions (approx.): WxDxH 180x14.4x63mm (7.09x0.57x2.48in)
- Housing Material: Metal
- Net Weight: 0.122kg (0.27lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20-90% RH (non-condensing)
- Power Requirements: 5VDC 1A
- Colour: Black
- Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 212x55x148mm (8.35x2.17x5.83in)
- Gross Weight: 0.228kg (0.5lb)
- Certificated: CE, FCC, RoHS, REACH & California Proposition 65
- Package Contents
- 4 Port HDMI Splitter with Audio
- Multi-Country Power Supply (UK, EU, US & AUS)
- Lindy Manual
