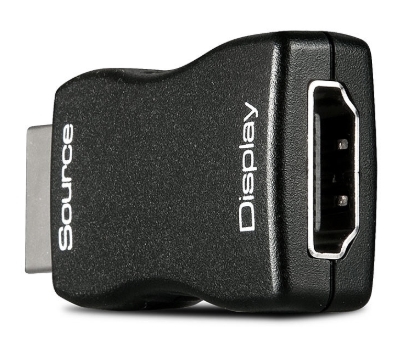

The Lindy HDMI 2.0 EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to Ultra HD 4K 60Hz including High-Dynamic Range and with the ability to pass–through HDCP 2.2 content, the Emulator is suitable for use with the very latest PC and AV applications. When used with the Lindy EDID/DDC Emulator this compact device can provide cloned EDID/DDC information to your graphics card.
- Continuously emulates HDMI EDID information
- Supports resolutions up to 3840x2160@60Hz including HDCP 2.2 pass-through and HDR
- For use with 32100 for cloning
- Powered via HDMI Source Interface
It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
Manual de Instruções (PDF 318 KB)
Technical details - Specification
- AV Interface: HDMI
- Interface Standard: 2.2
- Supported Bandwidth: 18Gbps
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8Bit / 4:2:2 12Bit
- Video EDID:
- 640 x 480p 60/72/75Hz
- 720 x 400p 60Hz/70Hz
- 720 x 480i 60Hz
- 720 x 576p 50Hz
- 720 x 576i 50Hz
- 800 x 600p 56/60/72/75Hz
- 832 x 624p 75Hz
- 1024 x 768p 60/70/75Hz
- 1280 x 800p 60Hz
- 1280 x 720p 50/60Hz
- 1152 x 864p 75Hz
- 1152 x 870p 75Hz
- 1280 x 1024p 60/75Hz
- 1280 x 960p 60Hz
- 1440 x 900p 60Hz
- 1600 x 1200p 60Hz
- 1680 x 1050p 60Hz
- 1920 x 1080i/p 50/60Hz
- 1920 x 1200p 60Hz
- 2560 x 1440p 60Hz
- 3840 x 2160p 24/30/60Hz
- Audio EDID: LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz
- HDCP Support: 2.2
- Special Features: High Dynamic Range Support, CEC Compatible
- Connectors
- Input: HDMI Type A Male
- Output: HDMI Type A Female
- Power: Via HDMI Source Interface
- Physical Properties
- Dimensions WxDxH: 24x43x12.3mm (0.94x1.69x0.48in)
- Housing Material: ABS
- Net Weight: 0.008kg (0.02lb)
- Operating Temperature: 0°C - 60°C (32°F - 140°F)
- Storage Temperature: -10°C - 70°C (14°F - 158°F)
- Humidity: 0 - 80% RH (non-condensing)
- Power Requirements: -
- Colour: Black
- Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 136x138mm (5.35x5.43in)
- Gross Weight: 0.013kg (0.03lb)
- Certificated: CE, FCC, RoHS & REACH
|
