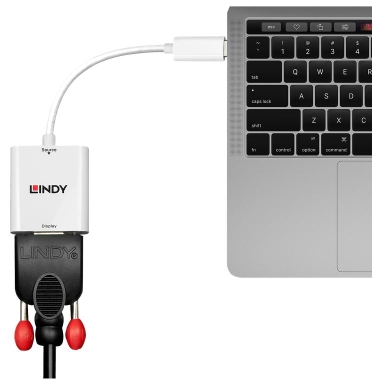

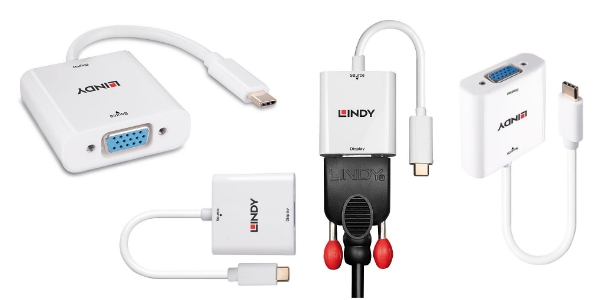

| The Lindy USB Type C to VGA Converter allows users to easily add external video capabilities to a computer featuring a USB Type C port with support for DisplayPort Alternate Mode. The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting.
- Converts a USB Type C port to a VGA port
- Supports VGA resolutions up to 1920x1200@60Hz
- Requires DisplayPort Alternate Mode support by the USB Port/Bus
- Plug & Play, no drivers required
Installation is simple as no drivers are required and the Type-C's reversible design has been developed to work regardless of which way the cable is inserted into the port, perfect for both professional and first time users.
Manual de Instruções
CE Declaration
DataSheet
Technical Details - Specifications
- AV Interface: USB Type C to VGA
- Interface Standard: VGA
- Supported Bandwidth: -
- Maximum Input Resolution: 1920x1200@60Hz
- Maximum Output Resolution: 1920x1200@60Hz
- Chipset: AG9300
- Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support (incl. Apple M1)
- Special Features: DisplayPort Alternate Mode
- Connectors
- Inputs: 1 x USB Type C (Male)
- Outputs: 1 x VGA (Female)
- Power: Bus-powered
- Physical Properties
- Dimensions (approx.) WxDxH: 45x45x15.2mm (1.77x1.77x0.6in)
- (Fixed) Cable Length: 110mm (4.33in)
- Housing Material: Plastic
- Net Weight: 0.028kg (0.06lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -10°C - 60°C (14°F - 140°F)
- Humidity: 10 - 85% RH (non-condensing)
- Power Requirements: -
- Colour: White
- Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 174x194mm (6.85x7.64in)
- Gross Weight: 0.037kg
- Certificated: CE, FCC, RoHS & REACH
- Package Contents
- USB Type C to VGA Converter
- Lindy Manual
|
