| 4K DP, HDMI®, USB 3.2 Gen 1, USB 2.0, PD 3.0, Gigabit, SD, MicroSD, Audio
- Connects a DisplayPort and/or up to 2 HDMI® displays, USB peripherals and powers the laptop over a single cable
- Supports 4K 3840x2160 60Hz for a single display or 2560x1440 60Hz dual displays
- Integrates a 4 port USB SuperSpeed 5Gbps Hub (3x Type A, 1x Type C)
- Included 100W Power Supply to charge the laptop while using the DST-Pro 101
The DST-Pro 101 was designed with pros in mind, this product allows for easy, fast, and reliable charging of your device, ensuring you can perform power-hungry tasks with ease. Housed in a robust aluminium body, this dock has been constructed to provide elite performance.

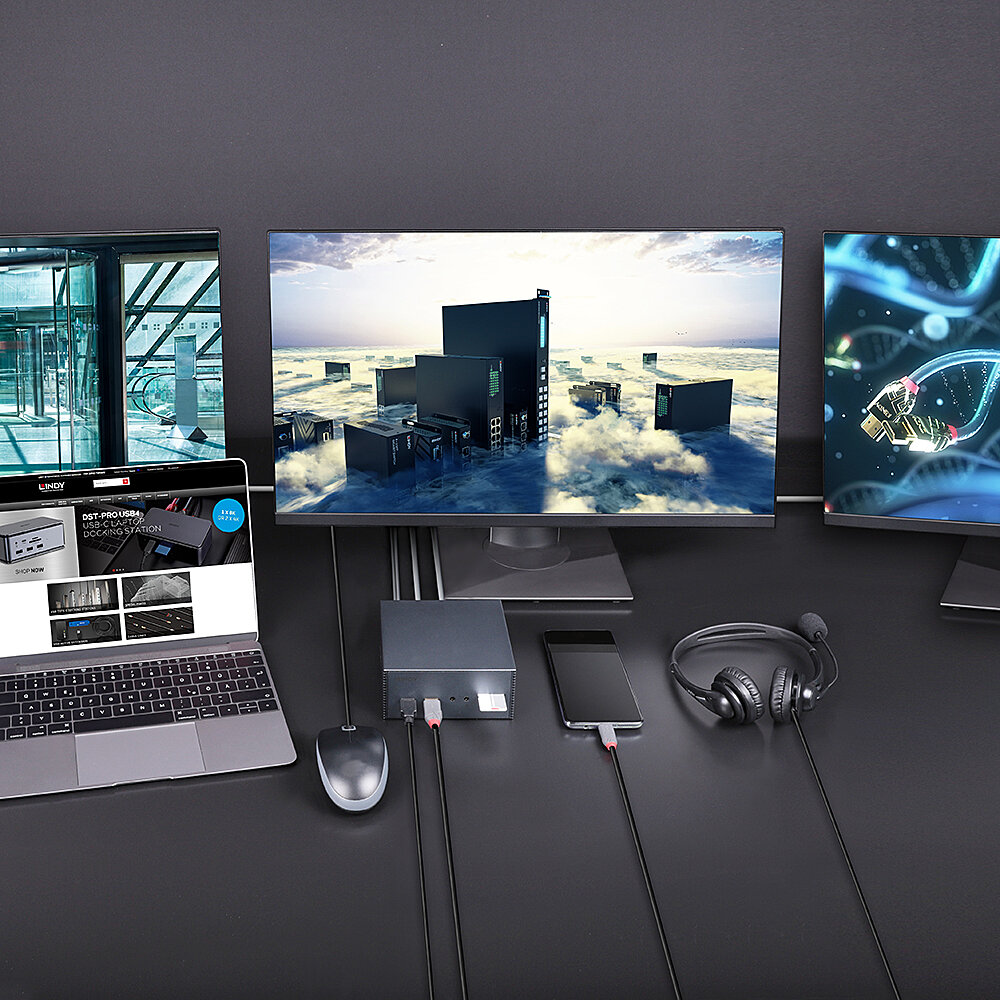

Extended Displays
This docking station comes with HDMI® and DisplayPort connections, all with 4k capability. With one extended display connected, you can expect Ultra HD 4K 60Hz. This product is also capable of supporting 2560x1440 60Hz for dual displays and 1920x1080 60Hz for triple display setups.
Multifunctional
Providing all the ports and card slot options you would need for a professional-grade workspace, this desktop delivers SuperSpeed USB ports as well as audio connectivity options. Through a single USB-C connection, access several USB Type A ports, one USB-C ports, Card Readers (SD & Micro-SD), separate 3.5mm audio and microphone jacks, two HDMI® ports, a DisplayPort and Gigabit Ethernet.
Powerful
With a 100W PSU (Power Supply Unit), this docking station has the capability to ensure your device is always fully charged and ready to deal with power-hungry, demanding tasks. Simply connect your docking station with one USB-C cable and be confident that your laptop is being charged whilst you work. This also leaves more available ports both on your device and docking station for connecting additional USB accessories and peripherals.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Specifications - Interface: USB Type C to 3x USB 3.0 Type A / 2x USB 2.0 Type A / 1x USB Type C / 1x RJ45 / 1x DisplayPort / 2x HDMI® / 1x SD & 1x MicroSD/TF 3.0 (Dual Disk) / 2x 3.5mm Audio (1x In, 1x Out)
- Supported Bandwidth: DP 1.1 with 10.8Gbps, HDMI® 2.0 with 48Gbps, USB 3.2 / 3.1 Gen 1 / USB 3.0 (5Gbps), Gigabit LAN (10/100/100Mbps)
- Maximum Input Resolution: 3840x2160@60Hz
- Maximum Output Resolution:
- Single Display: 3840x2160 60Hz
- Dual Displays: 2560x1440 60Hz
- Triple Displays: 1920x1080 60Hz
- Chipset: VL103R, VMM5310B, 2x VL817, FE8.1, VL171, RTL8153B, 3S1530, AU84612, IP2712
- Compatibility: USB Type C / Thunderbolt equipped computers with DisplayPort 1.4 and DisplayPort Alternate Mode support. Windows, macOS, Linux, Android, Chrome OS.
- Power Delivery: PD 3.0
- HDCP Support: HDCP 2.2
- Supported Audio: Supports Audio Stereo
- Separate Audio Ports: 2 x Audio 3.5mm (1x Mic)
- Special Features: DisplayPort Alternate Mode, Supports MST for Windows, PXE (Preboot Execution Environment) and wake on LAN (WOL) support, Supports MAC Address pass through (this feature is dependent upon the compatibility of the hardware used in each set up)
Connectors - Inputs: 1 x USB Type C (Female)
- Outputs: 3 x USB 3.0 Type A (Female), 1x USB 3.0 Type C (Female), 2 x USB 2.0 Type A (Female), 1 x RJ45 (Female), 2 x HDMI® (Female), 1 x DisplayPort (Female), 1 x SD (Female), 1 x MicroSD (Female), 2x 3.5mm Audio (Female)
- Power: 5.5/2.1mm DC socket
Physical Properties - Dimensions WxDxH: 122x55x122mm (4.8x2.17x4.8in)
- Housing Material: Aluminium
- Net Weight: 0.5kg (1.1lb)
- Operating Temperature: 0° - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 5 - 90% RH (non-condensing)
- Power Requirements (for Docking Station operation) : 25W
- Colour: Dark Grey
Miscellaneous - Packaging Type: Carton Box
- Packaging Dimensions: 210x156x150mm (8.27x6.14x5.91in)
- Gross Weight: 1.73kg (3.8lb)
- Product Compliance: CE, FCC, REACH & RoHS, CP65
Package Contents - USB-C Laptop Docking Station
- 0.9m USB 3.2 Gen 1 Type C Male to Male cable
- IEC C14 Power Supply 20V 5A
- 4x Mains Cable IEC C13 (Schuko, UK, US, AUS)
- Lindy Manual
Manual de Instruções (PDF 112.80KB)
|
