| The LINDY Multi AV Input to HDMI Presentation Switch allows you to conveniently share content from a variety of devices to a HDMI display, such as a projector, using just a single cable.
- Solution for integrating multiple devices in to meeting/conference/class room or auditorium
- Convert multiple analogue & digital inputs to a HDMI output

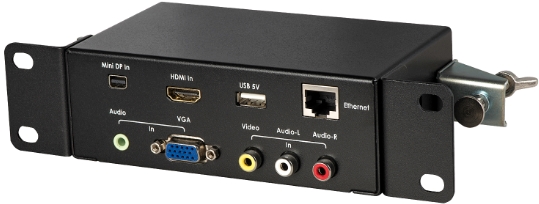

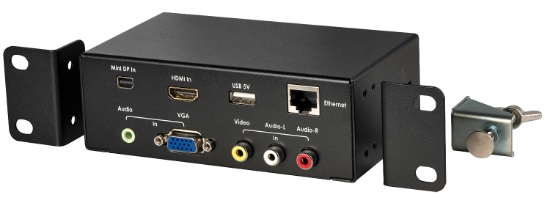

- Features VGA & Audio, Composite Video, Mini DisplayPort and HDMI AV inputs
- USB charging and Ethernet pass-through ports
Each of the connected devices is instantly converted and scaled to a HDMI signal, with the Presentation Switch automatically switching to use the most recently active device, making it ideal for use in class rooms, meeting/conference rooms and auditoriums.
For added convenience the Switch also features an Ethernet pass though port and a USB charging (5V 1.5A) port, handy for use in the absence of WiFi or for powering mobile devices.
In addition to the options given by the ports featured on the Switch, it is also possible to connect devices featuring different interfaces such as DisplayPort, DVI, MHL, Slimport using our range of AV converters.
The Presentation Switch can be used in conjunction with our range of long length HDMI cables and HDMI Extender's to reach even the most awkwardly located display or projector.
Manual de Instruções (PDF)

Technical details - Inputs
- HDMI A Female
- Mini DisplayPort Female
- VGA 15 Pin Female
- 3.5mm Audio Female
- 3 x RCA Female (Composite Video + Stereo Audio)
- RJ45 Female Ethernet (Pass-through)
- Outputs
- HDMI A Female
- RJ45 Female Ethernet (Pass-through)
- USB Type A Female (5V 1.5A Power Only)
- Maximum Analogue Video Input: 1920x1080p 60Hz
- Maximum Digital Video Input: 1920x1080p 60Hz
- Analogue Audio Support: 2 Channel Stereo (3.5mm & 2 x RCA)
- Digital Audio Support: up to 7.1 Channel Surround Sound (HDMI, Mini DisplayPort)
- Dimensions: 14x9x5cm
- Weight: 0.600kg (approx)
|
