| Distribute HDMI® 48G signals across 4 displays while extracting digital or analogue audio
- - Displays HDMI® signals across 4 displays simultaneously from one source device
- - Supports resolutions up to 8K 60Hz 4:4:4, with additional support for HDR
- - Extract digital and analogue audio from HDMI® for non-HDMI® amplifiers

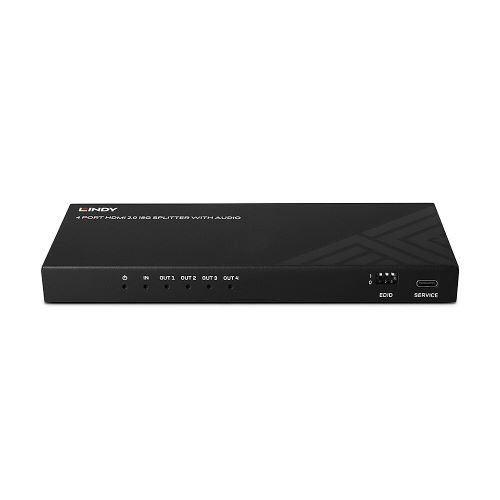

- - DIP Switches for output EDID adjustment

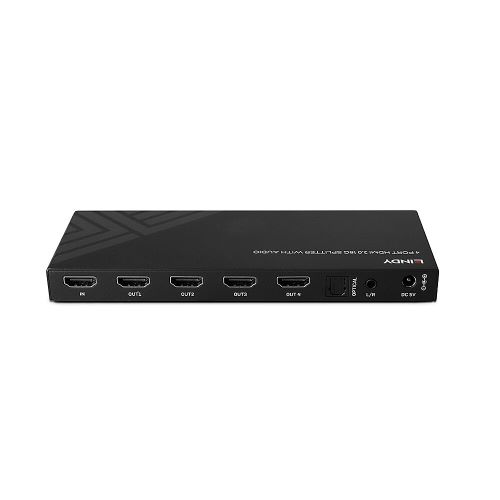

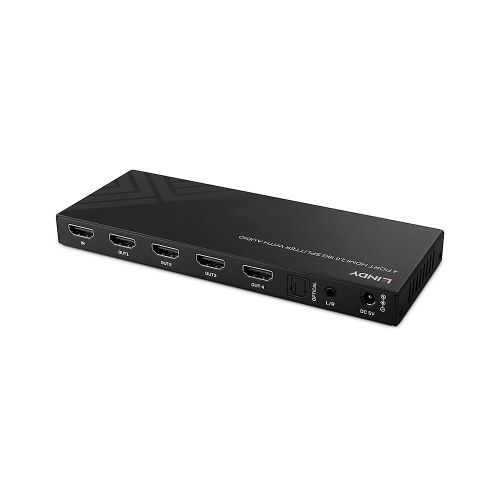

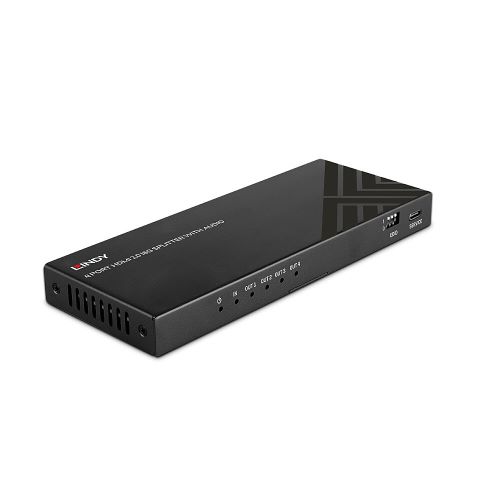

The Lindy 4 Port HDMI® 8K60 Splitter with Audio is a multi-function solution for distributing high quality HDMI® signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately.
With support for resolutions up to 8K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying live video across four screens at event venues or distributing engaging multiscreen educational presentations at tradeshows.
The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI® to connect non-HDMI® amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also features an integrated switch to downscale the input signal to 4K or Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.


Specifications - AV Interface: HDMI®
- Supports Bandwidth: 48Gbps as specified in HDMI® 2.1
- Maximum Resolution: 7680x4320@60 Hz 4:4:4 8bit
- HDCP Support: 2.3
- Supported Audio:
- Audio Pass-through
- LPCM 2CH
- Up to 7.1CH (Optical)
- Separate Audio Ports:
- 3.5mm (Female)
- Toslink (Optical)
- Special Features: Downscaler Function
Connectors - Input: HDMI® Type A (Female)
- Output: 4 x HDMI® Type A (Female), Toslink (Optical), 3.5mm (Female)
- Power : 5.5/2.5mm
Physical Properties - Dimensions (approx.) WxDxH: 176x17x68mm (6.93x0.67x2.68in)
- Housing Material: Metal
- Net Weight: 0.375kg (0.83lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (Non condensing)
- Power Requirements: 5VDC 2A
- Colour: Black
Miscellaneous - Packaging Type: Carton Box
- Packaging Dimensions: 240x70x130mm (9.45x2.76x5.12in)
- Gross Weight: 0.51kg (1.12lb)
- Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65
Package Contents - 4 Port HDMI® Splitter with Audio
- Multi-Country Power Supply (UK, EU, US & AUS)
- Lindy Manual
Manual de Instruções (PDF 112.80KB)
|
