Integrates 4 separate 4K60 signals on a single screen
- Full 4K60Hz input and output for multiple sources on a single display
- Supports 4 Display modes; Quadview, Picture In Picture, Dual Video and Standard
- Control Via RS232, IR Remote Control and Front Panel
- Seamless switching between Audio and Video signals
This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.
In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different
- Digital Presentations
- CCTV Surveillance & Control
- Video Conference & Meeting rooms;

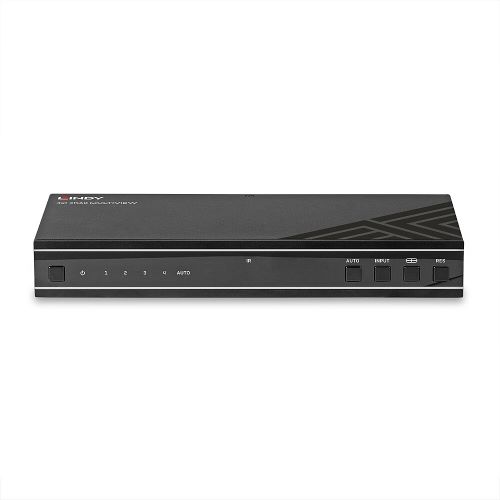

The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.
Technical Details
Specifications - AV Interface: HDMI®
- Interface Standard: HDMI®
- Supports Bandwidth: 18Gbit/s
- Maximum Resolution: 3840 x 2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- Supported Audio: RCA / Optical de-embedding
- Separate Audio Ports: R/L / Optical / HDMI®
- IR Support: 38Khz
- Serial Interface: 3-pin Phoenix RS-232
- Special Features: PiP, PbP, Triple, Quad

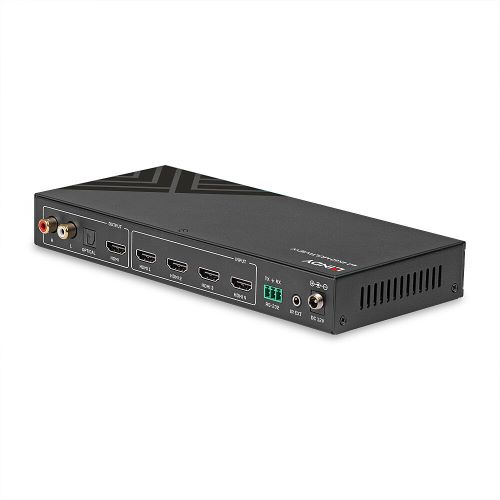

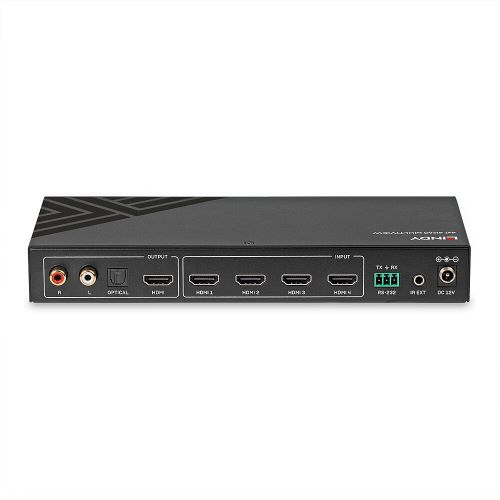

Connectors - Input: 4 x HDMI®
- Output: 1 x HDMI®
- Control: 3-pin RS-232, IR Remote Control
- Power: 5.5/2.1mm DC 12V/2.5A
Physical Properties - Dimensions (approx.) 219[W] x 111 [L] x 30 [H] mm (8.6x4.37x1.18in)
- Housing Material: Metal
- Net Weight: 0.61kg (1.34lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -4°C - 140°C (-20°F - 60°F)
- Humidity: 20% - 90% RH (non-condensing)
- Power Requirements: 12VDC 2.5A
- Colour: Black
Miscellaneous - Packaging Type: Carton Box
- Packaging Dimensions: 280 x 179 x 78mm (11.02x7.04x3.07in)
- Gross Weight: 1.078kg (2.37lb)
- Product Compliance: CE, UKCA FCC, RoHS & REACH
Package Contents - 1 x 4K60 HDMI® 4x1 Multiview Seamless UHD Video Switcher

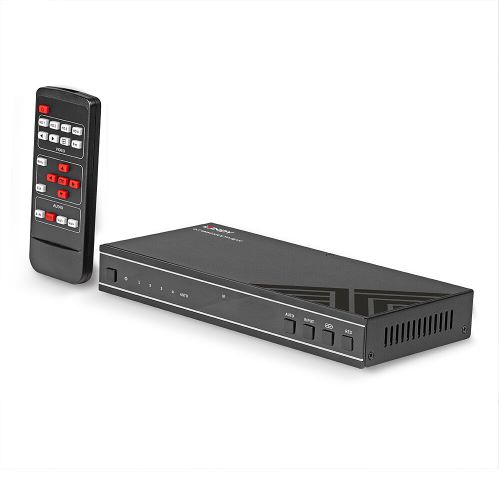

- 1 x IR Remote Control
- 1 x 3pin Phoenix connector (male)
- 1 x IR Receiver cable (1.5 Meters)
- 2 x Mounting Ears
- 4 x Screws (KM3*4)
- 4 x Rubber Feet
- 1 x Multi-Country Power Supply (EU, UK, US & AUS)
- 1 x User Manual
