Automatic audio switch, switches between 4 active ports
- Connects four digital optical Toslink sources to a single optical Toslink input
- Automatic or manual switch function
- Input ports: 4 x Toslink (Optical Fibre)
- Output Ports: 1 x Toslink (Optical Fibre)

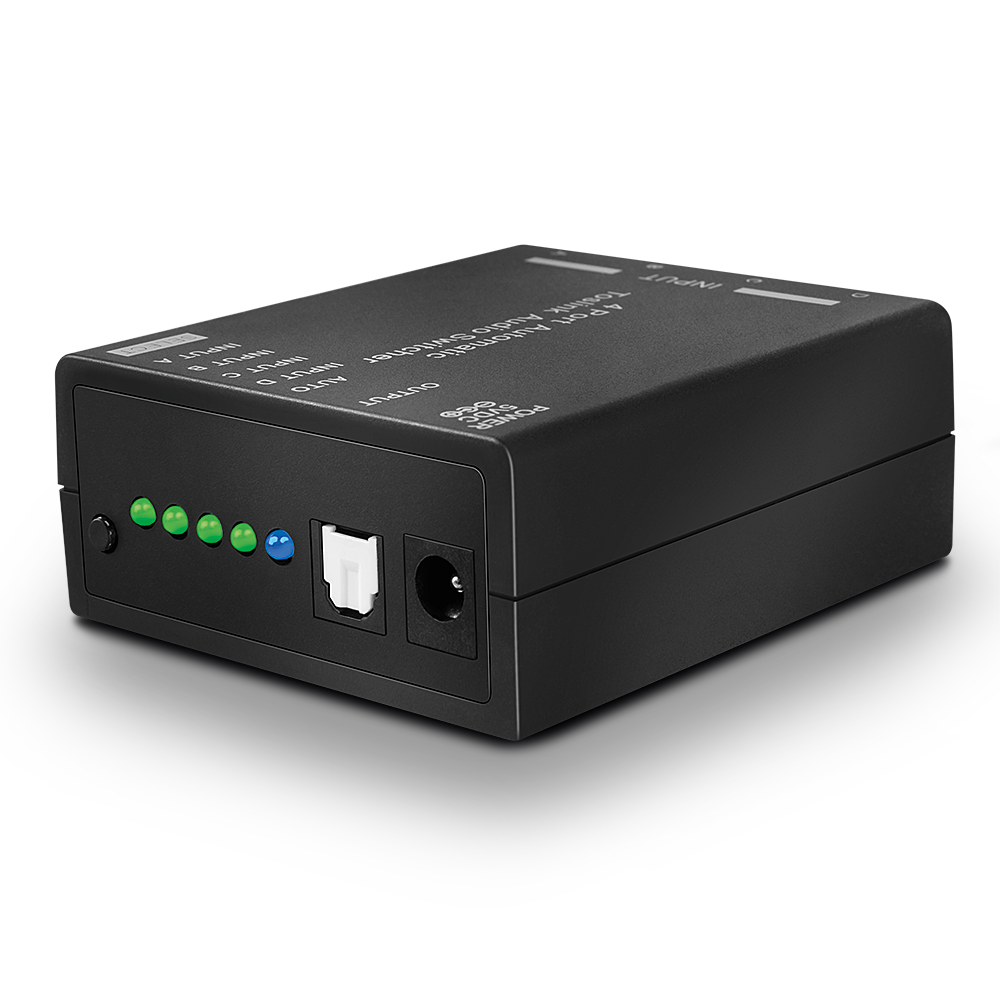

The Lindy 4 Port Automatic Optical Audio Switch allows users to connect four digital optical Toslink sources to a single optical TosLink (SPDIF) input on an AV amplifier, Hi-Fi or home cinema system. The optical switch will automatically detect the live signal and switch to this channel.
Ideal for use with games consoles, HD players, set top boxes, PC_s etc. and saves on wear and tear of constant plugging and unplugging of cables.

Please note: TosLink cables are not included.
Specifications - AV Interface: TosLink
- Supports Bandwidth: 32 - 96kHz
- Supported Audio: U ncompressed PCM / LPCM, Dolby AC-3, Dolby 5.1, Dolby Digital and DTS
- Special Features: Automatic switching of active ports

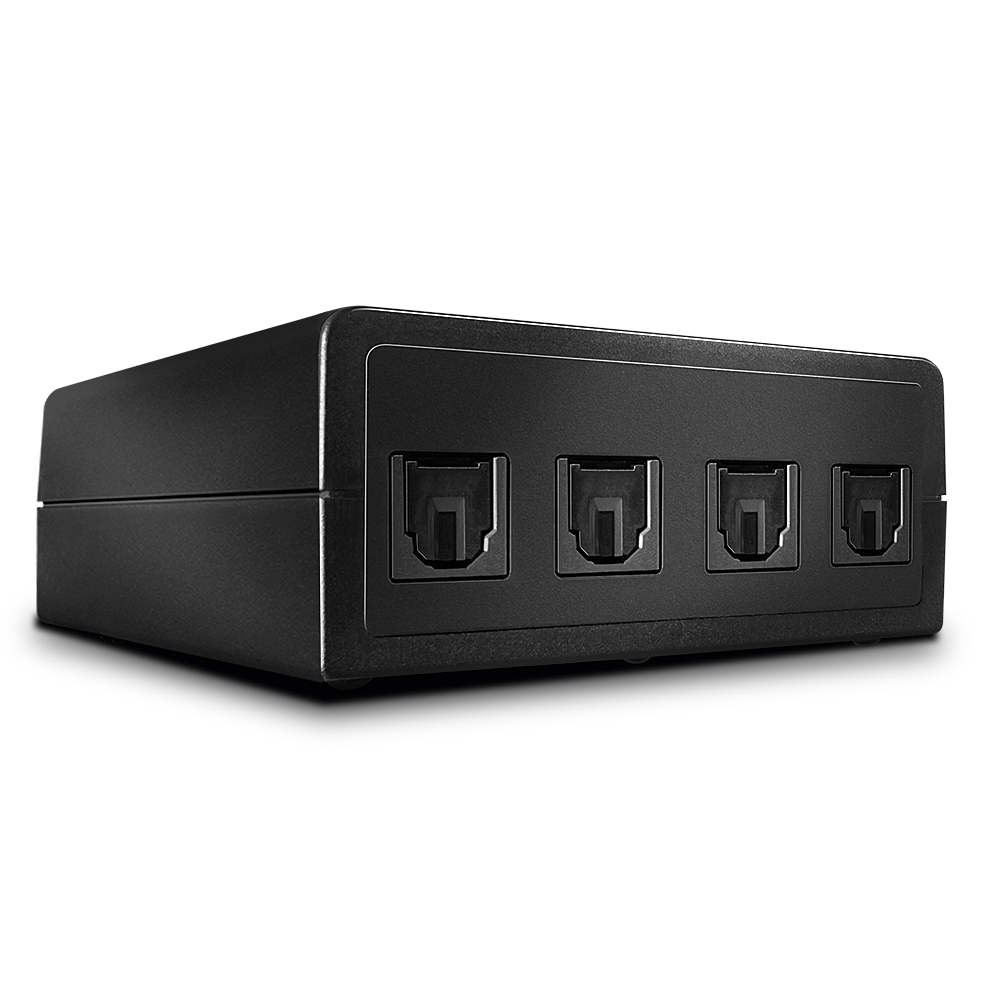

Connectors - Input: 4 x TosLink (Optical Fibre)
- Output: 1 x TosLink (Optical Fibre)
- Power: 5.5/2.1mm DC socket
Physical Properties - Dimensions (approx.) WxDxH: 75x65x30mm (2.95x2.56x1.18in)
- Housing Material: Plastic
- Net Weight: 0.057kg (0.13lb)
- Operating Temperature: 0°C - 50°C (32°F - 122°F)
- Storage Temperature: -20°C - 70°C (-4°F - 158°F)
- Humidity: 20 - 80% RH (non-condensing)
- Power Requirements: 5VDC 1.2A
- Colour: Black
Miscellaneous - Packaging Type: Carton Box
- Packaging Dimensions: 155x120x60mm (6.1x4.72x2.36in)
- Gross Weight: 0.293kg (0.65lb)
- Product Compliance: CE, FCC, RoHS & REACH
Package Contents - 4 Port Automatic Optical Audio Switch
- USB A to DC Cable, Barrel Size: 5.5/2.1mm
