| Share 4 USB devices between 4 computers
- - Supports USB 3.2 Gen 1 (USB 3.0), USB 2.0/1.1 backwards compatibility

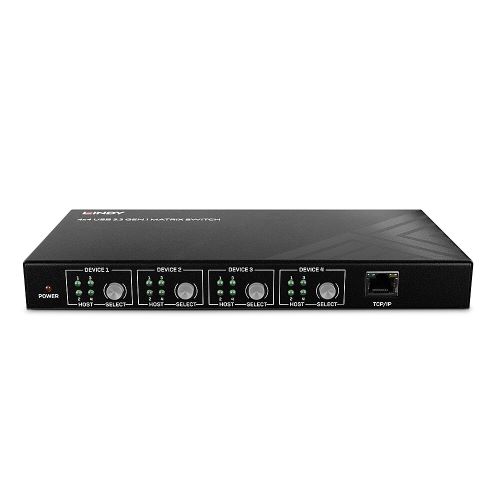

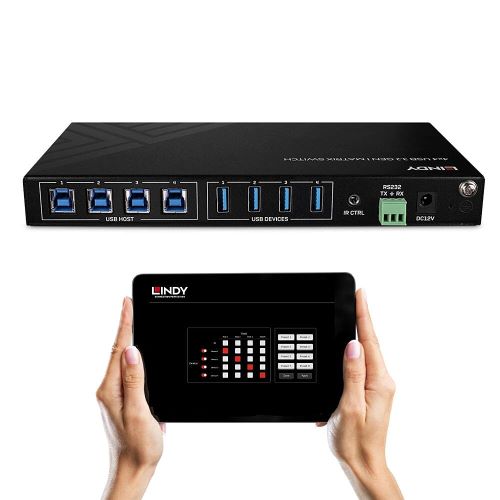

- - Switching between computers with buttons, TCP/IP with web GUI or RS-232 commands
- - Matrix switch with presets function
- - Plug & Play, no software required

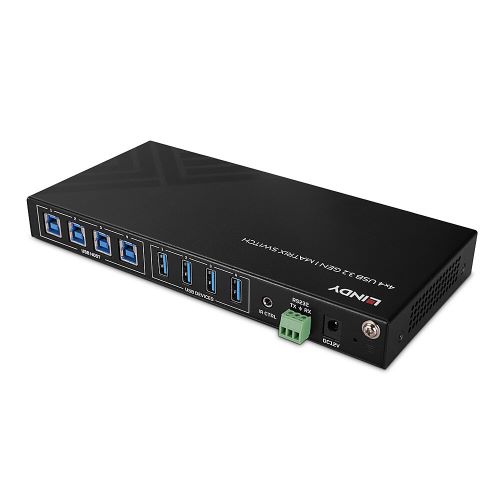

The Lindy USB 3.2 Gen 1 Matrix Switch allows the user to share up to 4 USB devices to up to 4 hosts in many different ways: by pushing the buttons on the front panel, via web GUI and using RS-232 commands.
It's possible to save up to 8 preset configurations, change the name of hosts and devices from the GUI and with the commands, for smooth and easy operations.
This matrix switch is ideal for sharing printers, storage devices or webcam in office environments, for conference room presentation systems, KVM or industrial applications. It can support USB 3.2 Gen 1 with data transfer rates up to 5Gbps, USB 2.0 and USB 1.1 devices, perfect for use with multiple PCs or Macs.
Each USB Type-A port provide up to 900mA power to the connected device.


Specifications - ConnectorUSB Standard: USB 3.2 Gen 1
- Supported Bandwidth: 5 Gbps
- Chipset: AT32F437 + VL817
- Compatibility: USB equipped computers
- Power Delivery: 900mA on each USB Type A port
- Special Features: Switching by buttons; web GUI, RS-232 commands

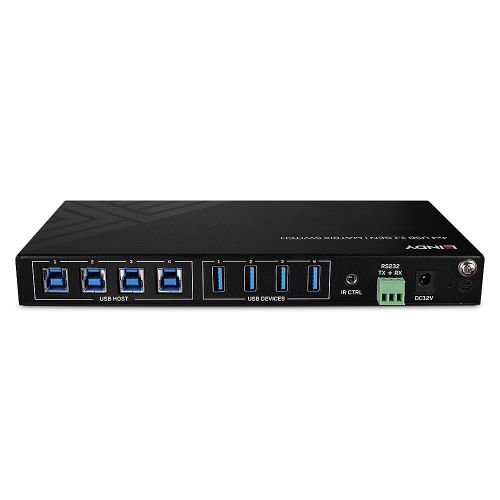

Connectors - Inputs: 4 x USB 3.0 Type B (Female)
- Outputs: 4 x USB Type A (Female)
- Control ports: RJ-45 (Female), RS-232 3-Pin Terminal Block
- Power: 5.5/2.5mm
Physical Properties - Dimensions WxDxH: 221x105x26mm (8.7x4.13x1.02in)
- Housing Material: Metal
- Net Weight: 1.15kg (2.54lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 0 - 90% RH ( non-condensing)
- Power Requirements: 12V 3A
- Colour: Black
Miscellaneous - Packaging Type: Carton box
- Packaging Dimensions: 260x173x70mm (10.24x6.81x2.76in)
- Gross Weight: 1.45kg (3.2lb)
- Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65
Package Contents - 4x4 USB 3.2 Gen 1 Matrix Switch
- 4x USB 3.2 Gen 1 Type A-B Cable, 1.2m
- Multi-country Power Supply (UK, EU, US & AUS)
- Lindy Manual
Manual de Instruções (PDF 112.80KB)
|
