| Fast switching via buttons, hotkeys, IR remote control and RS232
- Controls two HDMI® equipped PCs from a single console with keyboard, mouse and two monitors
- Dual Head support with 2 modes, single and dual PC mode
- Supports HDMI® 18G resolutions up to 4K@60Hz 4:4:4 with HDR
- USB 3.0 and 3.5mm stereo audio port to connect additional USB devices, speakers or headphones

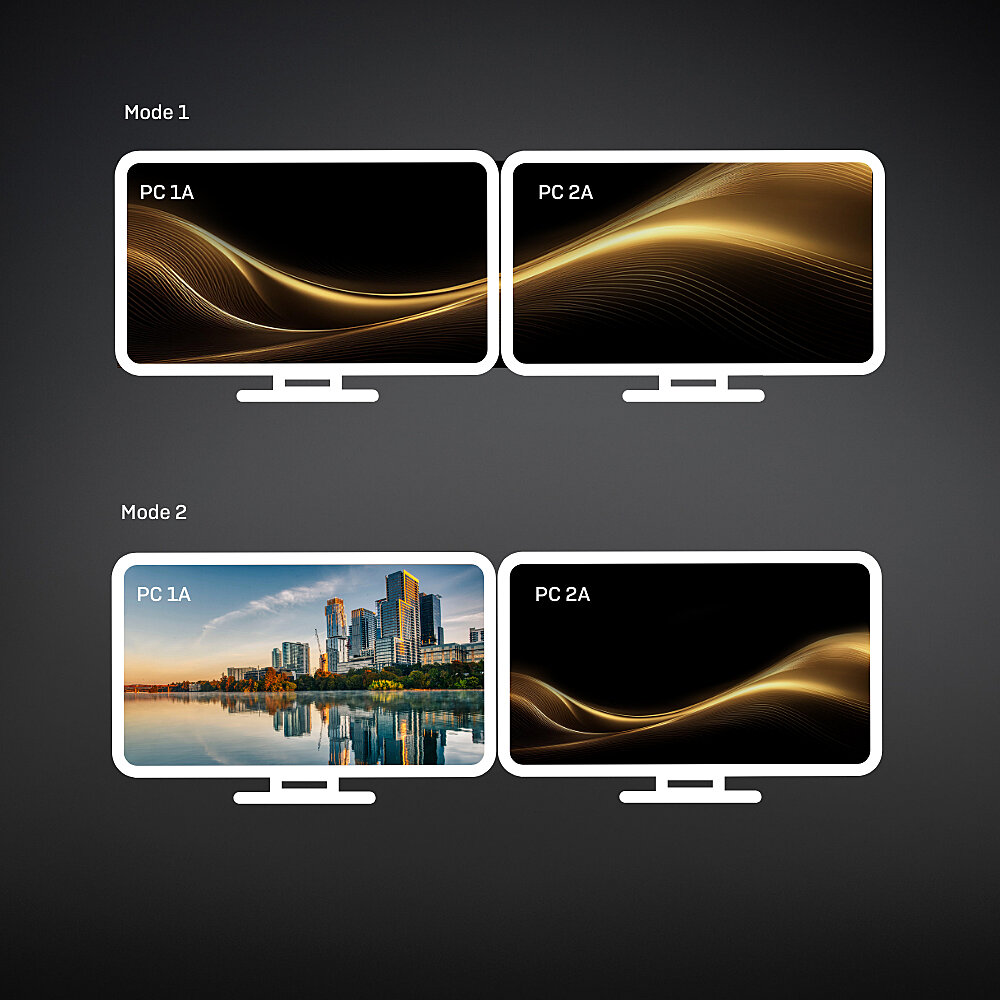

This KVM Switch can share 2 displays and USB devices between 2 computers in different modes: Single PC mode with both video showing the dual head input from one source; Dual PC mode with the first display fixed on the first PC1 input and the second display fixed on the first PC2 input.
Switching methods are:
- - Front panel buttons
- - Hotkeys (with on/off button)
- - IR remote control
- - RS-232 commands
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The additional support for (HDR) High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output port also allow users to connect headphones or speakers to add immersive 2CH audio.
USB ports allow the connection of mouse, keyboard and additional USB 3.2 Gen 1 devices such as web cam, flash drive, printer, etc. Auto-switch function enables automatic switching between connected PCs and DDM function ensures that all connected USB devices retain their settings and functionality when switching between PCs ensuring the maximum compatibility.
With advanced features and different switching methods, this switch is the perfect solution for professional KVM installations, plug and play presentations and home offices.


Specifications - AV Interface: HDMI®
- Console Interfaces: USB
- Interface Standard: HDMI® 2.0, USB 3.0
- Maximum Resolution: 4096x2160@60Hz 4:4:4 8Bit
- HDCP Support: 2.3
- Supported Audio: HDMI® Pass Through, Analogue Stereo
- Separate Audio Ports: 3.5mm (Female)
- Serial Interface: 3-pin Terminal Block
- Console Number: 1
- Max Number PC/Server: 2
- Cascadable: -
- Switching Method: Push Button, Mouse & Keyboard Hotkeys, IR Remote control, RS-232 commands
- 19" Rack Mountable: -
- Special Features: USB 3.0 device ports, dual head, active LED indicators

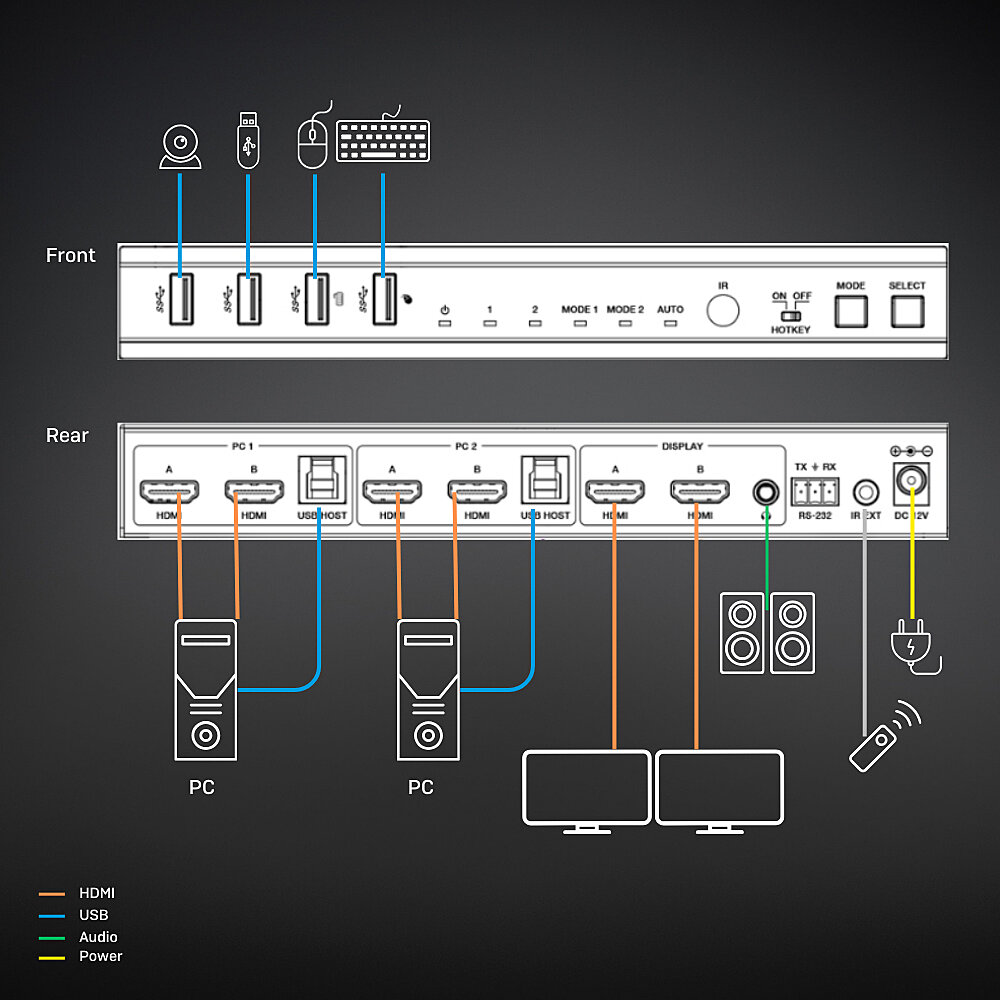

Connectors - Console Interfaces: 2 x HDMI® Type A (Female), 4 x USB Type A (Female), 3.5mm (Female)

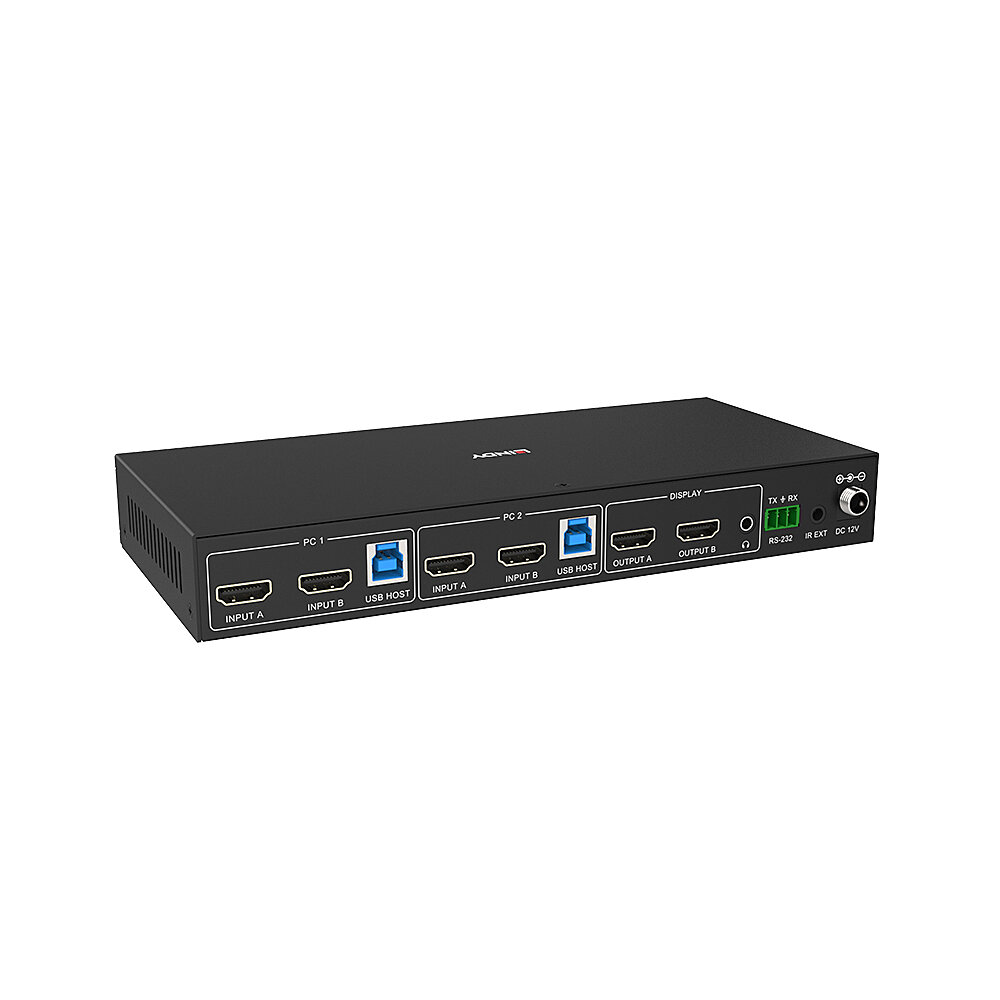

- PC/Server Interfaces: 4 x HDMI® Type A (Female), 2 x USB 3.0 Type B (Female)
- Other Interfaces: 3-Pin Terminal Block, 3.5mm IR (Female)
- Power: 5.5/2.1mm screw type DC socket
Physical Properties - Dimensions (approx.) WxDxH: 220x100x30mm (8.66x3.94x1.18in)
- Housing Material: Metal
- Net Weight: 0.609kg (1.34lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 12V 1A
- Colour: Black
Miscellaneous - Packaging Type: Carton Box
- Packaging Dimensions: 300x185x115mm (11.81x7.28x4.53in)
- Gross Weight: 1.611.kg (3.55lb)
- Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

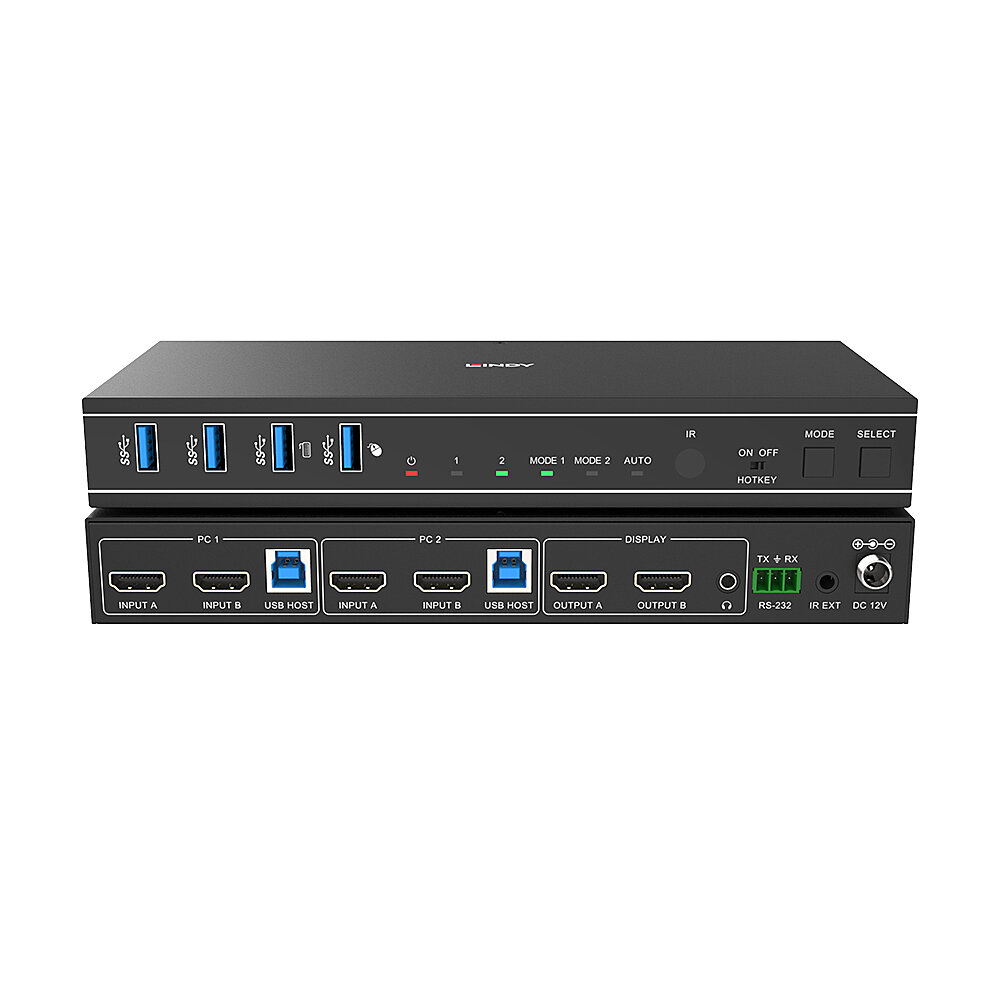

Package Contents - HDMI® Dual Head KVM Switch
- IR Remote Control
- IR Receiver Cable, 1.5m
- 2 x USB 3.0 Cable Type A to Type B, 1.8m
- 4 x HDMI® Cable, 1.5m
- 3-Pin Terminal Block
- 2 x Mounting Ears & 4 x Screws
- Multi-country PSU (UK, EU, US & AUS)
- Lindy Manual
