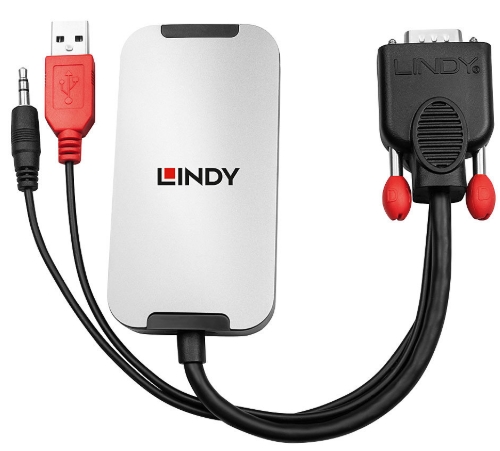

The Lindy VGA to DisplayPort Converter is a compact, premium solution for connecting a DisplayPort monitor or display to legacy VGA source devices. Supporting resolutions up to Full HD, this sleek converter is perfect for use in offices at home, in the workplace or in education, or for connecting analogue PC systems to eye-catching digital signage displays.
- >Convert legacy VGA signals to DisplayPort
- >Supports resolutions up to Full HD 1080p
- >3.5mm audio embedding to DisplayPort
- >USB Type A Bus-powered
An additional 3.5mm VGA audio connection also allows for audio to be embedded into DisplayPort to provide 2CH stereo to compliment a professional video experience, while a separate USB Type A connection ensures there is always enough power for even the most demanding scenarios.
Manual de Instruções (PDF)
Technical details - Specifications
- AV Interface: VGA to DisplayPort
- Interface Standard: VGA, DisplayPort 1.2
- Supported Bandwidth: 4.95Gbps
- Maximum Input Resolution: 1920x1080
- Maximum Output Resolution: 1920x1080@60Hz RGB 8bit
- Chipset:
- Supported Audio: Stereo via 3.5mm
- Separate Audio Ports: 3.5mm Stereo Audio Plug
- Special Features: USB Type A Male for power
- Connectors
- Input: VGA Male, 3.5mm Male Stereo Audio, USB Type A Male (Power)
- Output: DisplayPort Female
- Physical properties
- Dimensions (approx.) WxDxH: 50x95x15mm (1.97x3.74x0.59in)
- Cable Length: 180mm (7.09in)
- Housing Material: Aluminium
- Jacket Material: PVC
- Jacket Diameter: 6mm (0.24in)
- Net Weight: 0.114kg (0.25lb)
- Operating Temperature: 0°C - 70°C (32°F - 158°F)
- Storage Temperature: -10°C - 80°C (14°F - 176°F)
- Humidity: 20 - 85% RH (non-condensing)
- Colour: Black
- Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
- Gross Weight: 0.122kg (0.27lb)
- Certificated: CE, FCC, RoHS & REACH
- Package Contents
- VGA to DisplayPort 1.2 Converter
|
