| For graphics cards with a hole spacing of 79 - 80mm on the radiator!
Quiet VGA cooler for most ATI, NVidea and similar graphics cards with a fan in a closed PC case can hardly be heard. Suitable for Replacement of ,for example, if the original fan after a few years, become difficult or impossible to rotate or is noisy. It is important primarily the approximate size of the fan / heat sink and the distance of the mounting holes and 79 to 80mm diagonal.
The fan has a 3-pin power connector with tachometer signal (yellow line), but it can safely be connected to a 2-pin connector on the graphics card, while only need the red and black connecting cables are plugged in
Where appropriate, this may be the plastic base of the plug will be deducted on the graphics card.
Specifications
* Copper heat sink
* Ball bearing fan: Diameter 45mm, height: 10mm () without heat sink

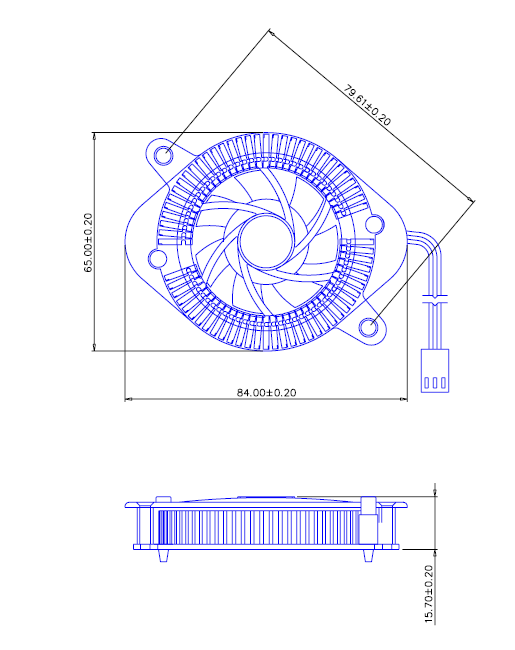

* Heat sink dimensions approx: 88 x 65 x 15.7 mm (total height including plastic hood, hood removed for installation in ventilation concepts with existing cap)
* Noise level approx: 31dBA
* Lifetime: approximately 50,000 hours
* Delivery includes 2 nylon spring clip to attach
* Power connector: 3 pin Molex connector
* Delivery includes an optional power adapter for 3 to 4 pin internal 5.25 "power connector
|
