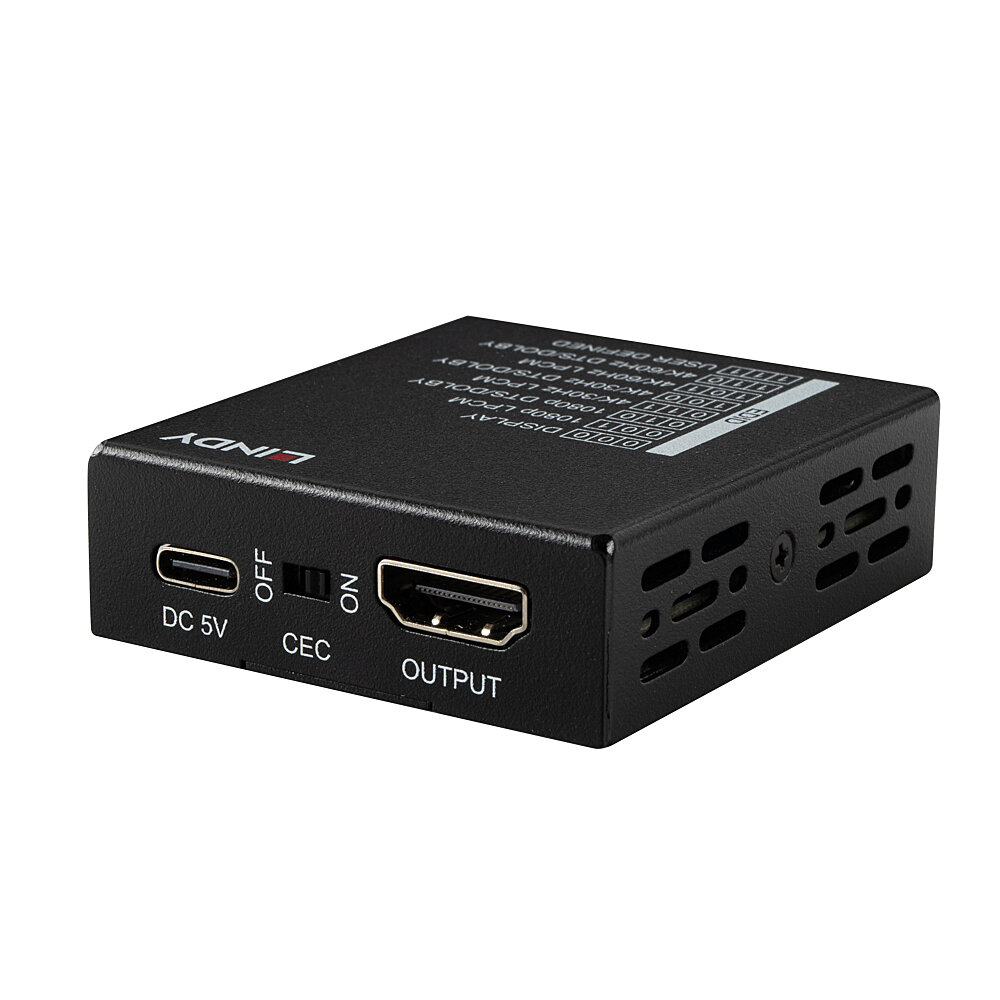

Store EDID/DDC information for your HDMI display!
- Push button operation directly clones the EDID/DDC data of any connected HDMI Monitor or Projector
- User Selectable Preset EDID
- Resolutions: 480i - 1080p
- Audio: LPCM 2 & 8 Channel
- Uses cloned data or, when this is not available, the stored preset screen resolutions
- Continuously emulates EDID/DDC information
- Supports HDCP, multi-channel audio and 3D via cloning
- Can be powered from the video port, via a built-in USB pass through port, or using an optional external power adapter
- Dimensions: 103 x 70 x 27mm (WxDxH)
This emulator is designed for systems that require EDID/DDC signals to be continuously provided without interruption. Some computer systems, KVM switches and digital video signage systems may interrupt the data, or may not be able to pass this information directly back to the video card. This simple solution will clone the connected monitor's EDID/DDC and emulate them without interruption.
Saved default standard resolutions for use when cloning the monitor data is not possible.
Technical Specification - Supported Resolutions: 480i, 480p, 576p, 720p, 1360x768, 1366x768, 1080i & 1080p
- Supported Audio Channels: 2 & 8 Channel
- Supported Audio Formats: LPCM, AC-3, DTS, SACD, DTS-HD & WMA Pro
- Video connectors: 2 x HDMI Type A Female
- USB Power connectors: 1 x type B (Input), 1 x type A (Output) with USB pass through function
- DC Power connector: 1 x DC jack 2.5/5.5mm + Centre 5V DC
- Dimensions: 103 x 70 x 27mm (WxDxH)
- Weight: 65g
Manual de Instruções (PDF 318 KB)
|
